Swiftech Polaris 120 5 Heat Pipe Heatsink w/ 120mm PWM Fan

Price:

$59.75

MPN:

Polaris 120

Brand:

SWIFTECH

Condition:

NEW

Availability: Ships in 2 business days

Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

(5) 8mm heat pipes – the hottest heat pipes (directly above the CPU) are arranged to receive the maximum amount of air-flow for optimized thermal performance.
Fins form wind tunnels for optimum air-flow, resulting in more efficient use of the fan, therefore better cooling.
Direct-touch base technology provides an optimized transfer of the heat to the pipes.
A single high Power (84CFM) PWM controlled 120mm fan is included:
- Being PWM controlled, the fan plugs into the motherboard CPU fan header, and users can either let the motherboard manage the fan speed, or tune it to their own specifications; the speed ranges from 750 to 2500 RPM allowing a wide range of operations: from ultra-quiet all the way to extreme cooling for seriously overclocked processors.
Relatively compact footprint (Width 135 mm x Depth 91 mm x Height 152 mm including fan).
Mounting system includes retention brackets for all popular processors:
- Intel Socket 775, 1155, 1156, 1366
- AMD Socket 754, 939, 940, F, AM2, AM3
Competitively priced, yet with a broader range of operations compared to other high-end coolers.

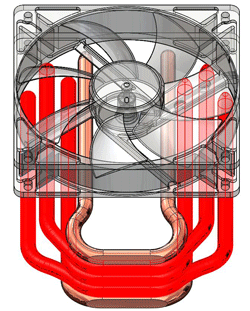

The hottest heat pipes (those directly above the CPU core), receive the most airflow.


The center section of the fins form an enclosure in front of the fan hub where air flow is at its lowest, and the edges of the fins are closed. This creates two wind tunnels maximizing airflow around the heat pipes. The shape of the fins and central enclosure create a calculated restriction towards the exit to regulate the air velocity across the entire fin length.

Fan

·         Speed control: Via Motherboard PWM (4 pin)
·         Nominal Voltage: 12v
·         Max Current: 0.32A
·         Airflow range 26 ~ 84 CFM
·         Noise range 13.2 ~ 41.5 dBA
·         Speed range 750 ~ 2500 RPM ±250RPM
·         Bearing: Hydraumatic
·         Life 30,000 Hours

Heatsink

·         Fin material: aluminum
·         Heat pipes: 8mm sintered copper
·         Direct-touch patented base technology
