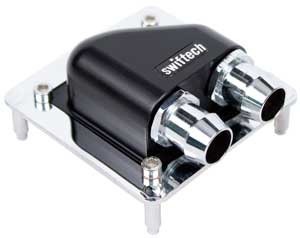

Swiftech MCW82-7970 (Black) Universal GPU Waterblock

Product news (as of 6/2/2012): The MCW82 is now available for AMD's Radeon HD7900 series

The MCW82-7900 is a version specifically designed for AMD's new Radeon™ 7900 series (HD7970 and HD7950).

The hold down plate  is compatible with the series 54mm mounting hole form factor (as opposed to all other single GPU Radeon series that feature a 53.2mm hole mount), and the feet are terminated by standoffs going thru the PCB and slightly protruding on its back side. This great feature enables the use of AMD's reliable and effective cross-bracket shipped with most reference cards, and it adds convenience and reliability to the installation of the product. [Edit: see product news effective 7/12/2012 above - An alternate screw-pack was included up to 7/11/2012 to be utilized with reference PCB models that do not make use of AMD's cross-bracket; as of 7/11/2012 a standard AMD cross-bracket is now included]

The copper base plate features a pedestal necessary to clear the PCB stiffening frame which is higher than the GPU surface in this particular series, and it provides perfect contact with the GPU.  All other features of the product remain identical to that of the original MCW82



Base Plate

Micro Pin Matrix (25x.25mm), C110 copper

Housing

Black Delrin

Eurostyle fittings with built-in o-ring

Compression fittings supported for tubing size of up to 3/8" (10mm) ID
