Swiftech MCR140-X MCR140-X Drive w/ Built-in Reservoir & Pump

Swiftech MCR140-X MCR140-X Drive w/ Built-in Reservoir & Pump

Price:

$99.99

MPN:

MCR140-X

Brand:

SWIFTECH

UPC:

877790002916

Condition:

NEW

Availability: Ships in 2 business days

Ships in 2 business days

Shipping:

Calculated at checkout

Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

SHARE

Product Description

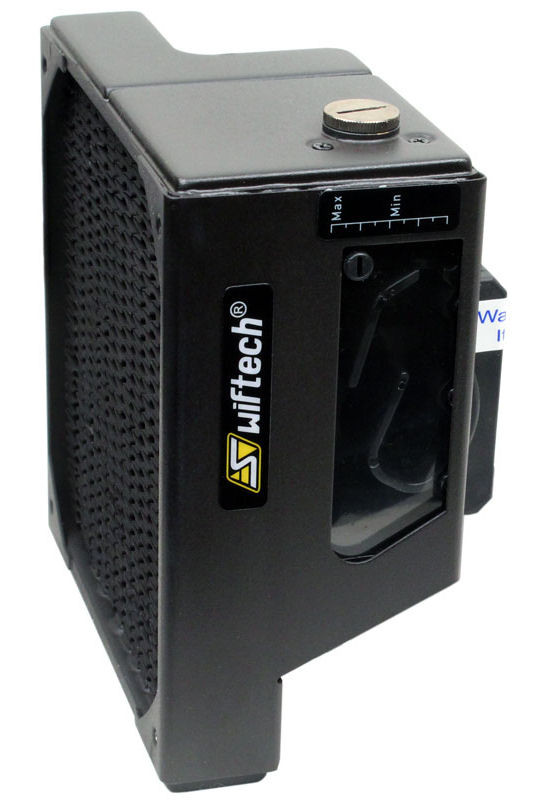

The patent pending MCR140-X Drive 140mm copper and brass radiator includes a built-in windowed illuminated reservoir, and an integrated high pressure pump (MCP30 model).

As a DIY item, the MCR140-X ships without fan, coolant, or fittings. The product is compatible out of the box with all G1/4 fittings, so any tubing can be installed at the user's choice.

Radiator Material	Brass tubes, louvered copper fins, 12~14 FPI
Dimensions	150mm x 140mm x 90mm
Radiator and pump thread class	G 1/4
Radiator Installation hardware	Standard: (4) 6-32 x 1 3/16 (30mm) Philips screws
Pump speed control	PWM
Pump Speed range	1200 ~ 3000 RPM
Pump nominal voltage	12 VDC
Pump nominal power	6W
Pump Bearing type	Ceramic shaft, PTFE bearing
Pump Power connector	SATA
Pump RPM & PWM connector	Mini 4-pin
Pump MTBF	60,000 hours
ROHS	Compliant
