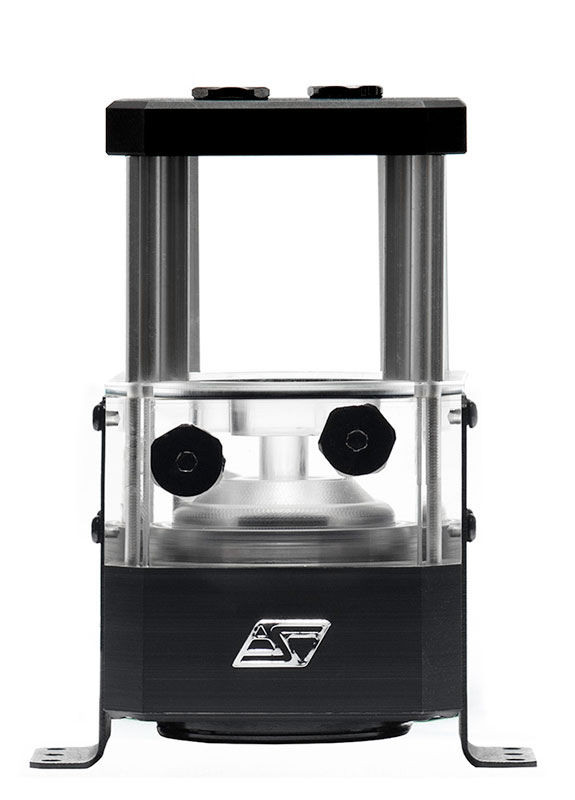

Swiftech MAELSTROM-D5V2-X50 Maelstrom D5V2 50mm Reservoir / Pump Combo

Price:
 $199.00
MPN:
 MAELSTROM-D5V2-X50
Brand:
UPC:

Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Swiftech MAELSTROM-D5V2-X50 Maelstrom D5V2 50mm Reservoir / Pump Combo to your wish list.

SHARE

Product Description

  • 50,000 hours MTBF (Mean Time Between Failure) equivalent to 5 years lifetime
  • Molex 4-pin connectivity: plugs into the computer power supply
  • High pressure capability, ideal for both complex and high flow loops
  • The pump speed can be adjusted using the motherboard PWM signal (CPU Fan header) to yield top performance or virtually silent operations
  • 4x G1/4" ports (including 2x top ports for both filling and return line)
  • 2x G1/4" plug included
  • Bottom and Side panel mounting, hardware included
  • Built-in addressable RGB lighting, compatible with Swiftech's Iris Technology (Swiftech Iris Eco V2 controller sold separately), also compatible with most high-end motherboards with support for addressable RGB LED's (Swiftech Mobo adapter sold seperately).
Pump Specifications MCP655-PWM / Laing/Xylem D5-PWM
Nominal Voltage 12 V DC
Operating Voltage 8 to 24 V DC8 to 24 V DC
Nominal Power (@ 12 V) 24 W
Nominal Current (@ 12 V) 2 A
Speed control Via motherboard PWM CPU Fan signal - Note: pumps runs at full speed by default when PWM is not connected
RPM signal & range Yes - 800 to 4800 rpm
Motor Type Electronically Commutated DC Spherical Brushless Motor , with automatic overload protection and low in-rush current
Nominal Head (@12v) ~ 13 ft (4 m)
Nominal Discharge (@12v) ~ 330 Gph (1250 Lph)
Ports G 1/4  ports (4x) - 2x plugs are included
Maximum (working) Pressure 50 PSI (3.5 BAR)
Temperature Range 32 °F to 140 °F (0 °C to 60 °C)
Electrical Connector Molex 4-pin
PWM & RPM signal Mini 4-pin Fan-type
