Swiftech KOMODO-RX480 Full Cover VGA Waterblock

Price:

$109.99

MPN:

KOMODO-RX480

Brand:

SWIFTECH

UPC:

877790003111

Availability: Ships in 2 business days

Shipping:

Free Shipping

Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Product Description

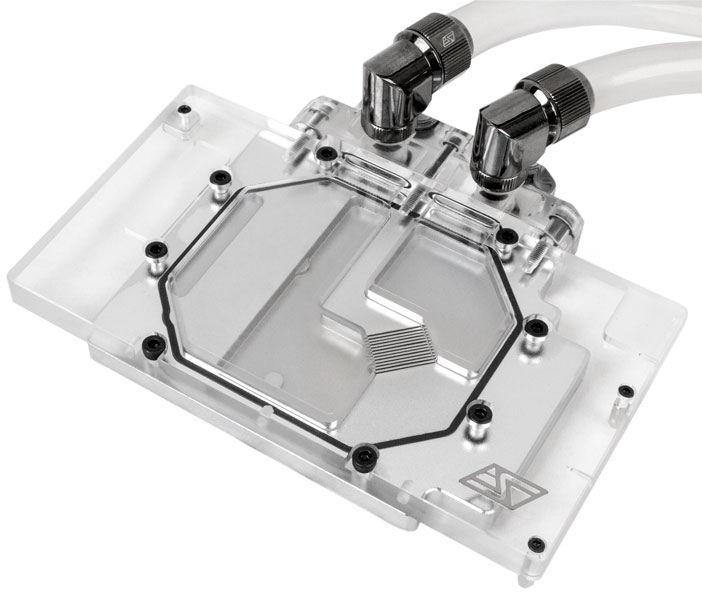

The Komodo™ RX480 full cover VGA waterblock is a high performance cooling solution with advanced thermal design and low flow restriction, compatible with Radeon™ RX 480 Graphics Cards (AMD reference PCB design). The coolant flow path includes all critical components such as GPU, memory, VR's and power mosfets. Proper cooling of all the critical components contributes to overclocking stability, reliable operations, and longevity of the graphics card. The block also covers the entire PCB, leaving no components exposed to possible damages during handling.

What is included in the box

Water-block

Installation screws

Pre-installed thermal pads

Tim Mate 2 Thermal grease

(2) G1/4 plugs

Installation guide

Technical Specifications

Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4)

Quality assurance: leak tested at 30 PSI

Thermal joints installation:

GPU: thermal compound (included)
Memory & power fets: pre-installed 0.5mm thermal pads

Housing material: Acrylic

Base Plate material: Chrome plated C110 copper

Optional back-plate material: Black anodized aluminum

Dimensions: (L) 7.5" - 190mm x (W) 4.8" - 123mm x (H) .79" - 20mm (measured from GPU pedestal to top of housing)

Mass: 39 oz - 1105 g

Why is the Komodo-RX480 a superior cooling solution ?
The only true full cover water-block	The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to competing solutions that leave critical components exposed for cost saving purposes.
Moderate flow restriction by design	The water channels have been optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates.
Back-plate	A high quality black-anodized aluminum back-plate is available in option; the original factory back plate is compatible with this product.
True Chrome Plated copper base plate	Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish).
Precision CNC machined housing	The housing is precision CNC machined out of top quality Acrylic material.
Pre-applied thermal pads	High conductivity thermal pads are applied to the memory and VRM areas; there is no need to waste time cutting thermal pads as is often the case with other blocks; high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area.
SLI support	Depending on your motherboard, up to four Komodo-RX480 waterblocks can be interconnected using Lok-Seal™ adjustable connector fittings
