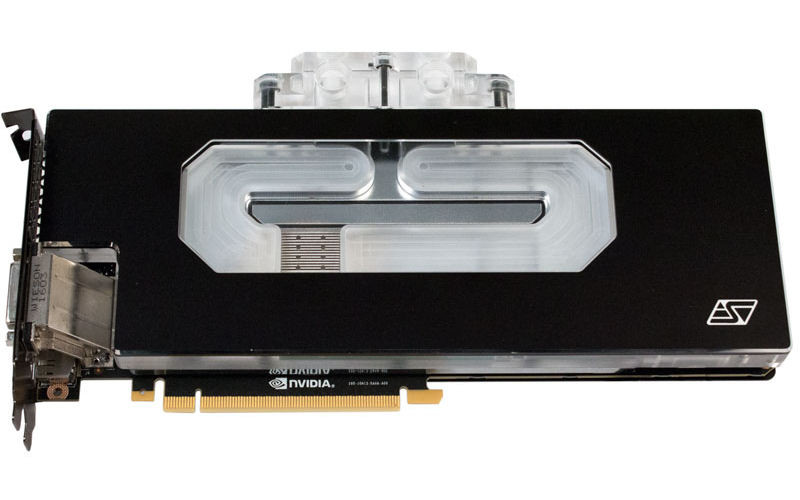

Swiftech KOMODO NV-LE-GTX1080 Full Cover VGA Waterblock
Price:
$199.00
MPN:
KOMODO NV-LE-GTX1080
Brand:
UPC:
877790003067
Availability: Ships in 2 business days
.
Shipping:
Calculated at checkout
)
Product Description
| The only true full cover water-block | The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to many competing solutions that leave critical components exposed for cost saving purposes; the Komodo NV-LE series continue this exclusive Swiftech® initiative as a true professional solution. |
| Moderate flow restriction by design | The water channels are optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates. |
| True Chrome Plated copper base plate | Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish). |
| Precision CNC machined housing | The main housing is precision CNC machined out of acrylic material. |
| Pre-applied thermal pads | High conductivity thermal pads and reusable high performance gap-fillers are pre-applied to the memory, VR and other components; there is no need to waste time cutting thermal pads as is often the case with competing solutions; our high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area. |
| SLI support |
Up to four Komodo NV-LE GTX 1080 waterblocks can be interconnected using either Lok-Seal™ adjustable connector fittings, or our new upcoming generation of SLI bridges (to be announced). |
| What is included in the box |
| Water-block |
| ALED lighting system (pre-installed inside block) |
| Light controller (PWM splitter), and extension cable |
| Installation screws |
| Pre-installed thermal pads |
| VGA back-plate |
| Tim Mate 2 Thermal grease |
| (2) G1/4 plugs |
| Installation guide |
| Technical Specifications |
| Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4) |
| Quality assurance: leak tested at 30 PSI |
Thermal joints installation:
|
| Housing material: acrylic |
| Base Plate material: Chrome plated C110 copper |
| Dimensions: (L) 10.5" - 268mm x (W) 4.8" - 122mm x (H) .74" - 19mm (measured from GPU pedestal to top of housing) |
| Mass: 44 oz - 1247 g |
Other Details
MPN:
KOMODO NV-LE-GTX1080
