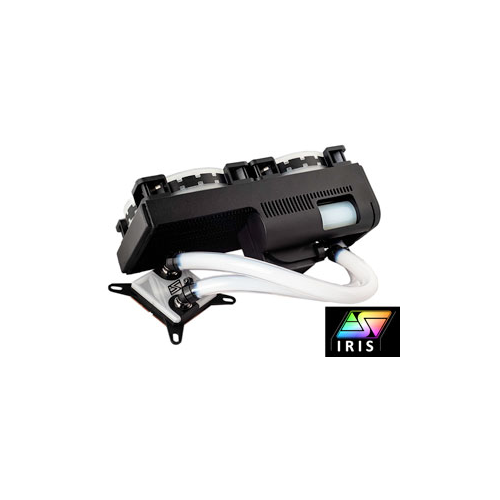

Swiftech H240X3 Drive X3 AIO Liquid CPU Cooling Kit

Price:

$209.00

MPN:

H240X3

Brand:

SWIFTECH

UPC:

877790003418

Condition:

NEW

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Product Description

Specifications
Radiator with patent pending integrated pump and reservoir (1 each)
Radiator body
Material	Brass tubes, louvered copper fins
Body dimensions	127 mm x 254 mm x 28 mm (H240X3) / 127 mm x 375 mm x 28 mm (H360X3) /
Fill-port thread class	G 1/4
Barb fittings	Integrated swivel 90° elbows, 3/8" (10mm) OD
Installation hardware	Standard: (8) coarse thread fans screws Alternate: (8) 6-32 x 1 3/16 (30mm) Philips screws
Lighting type	Swiftech IRIS compatible ALED
Reservoir
Material	Tempered Glass
Capacity	70 ml
Lighting type	Swiftech IRIS compatible ALED
Pump
Pump speed control	PWM
Pump Speed range	1200 ~ 3000 RPM
Pump nominal voltage	12 VDC
Pump nominal power	6W
Max. Static Pressure	2.8 mH₂O
Max. discharge	11 l/mn
Redundant fail safe	Software current limiting fail-safe and Hardware shutoff built-into the pump power wires. The hardware fail safe is only triggered in case of a firmware malfunction.
Pump Bearing type	Ceramic shaft, PTFE bearing
Pump Power connector	SATA
Pump RPM & PWM connector	Mini 4-pin
Pump MTBF	60,000 hours
ROHS	Compliant
Helix™ IRIS Fan
Dimensions	120 mm x 120 mm x 25 mm
Speed control	PWM
Speed range	900+/- 25% ~ 1800+/- 10% RPM
Airflow range	24 ~ 60 CFM
Static pressure range	0.61 ~ 2.35 mmH₂O
Noise level range	<16 ~ <32 dB/A
Nominal Voltage	12 v
Nominal current	0.2 A
Bearing Type	Z-axis
Connector	Mini 4-pin
MTBF	60,000 hours
ROHS	Compliant
Apogee™ SKF "LT" Waterblock
Housing material	Acetal
Base plate material	C110 copper
Cooling engine	0.125mm x 0.125 micro-fin array
Barb fittings	Swivel elbows, 3/8" (10mm) OD
Port thread	G1/4 standard
Installation hardware & processor + socket compatibility	For Intel LGA 1150/51/55/56 M4 to M3 Standoffs + Back-plate For Intel LGA 2011 (4) Spring loaded screws with M4 thread For AMD AM2, AM3, FM1,FM2, 93, AM4, TR4 (2) Pre-assembled brackets & spring loaded screws Bracket installation screws
Lighting type	Swiftech IRIS compatible ALED
Tubing & Coolant
Material	Mayhem non-plasticizing PVC tubing
Color	Clear
Dimensions	5/8" x 3/8" (16/10mm)
Coolant	Pre-filled with Mayhem's non-toxic Pastel Nanofluid Coolant
Clamps (4 each)
Material	Black anodized aluminum
IRIS ECO V2 Controller (1 each)
PWM Ports	4
RPM signal port	Channel 1
ALED connectors	3
2 pin connector	1
Power connector	SATA
PWM/RPM connector	Mini 4-pin
Installation hardware	Peel-off sticker, mounting screws & nuts
ROHS	Compliant
Tim-Mate 2, 1g syringe thermal compound
Quick Installation Guide
