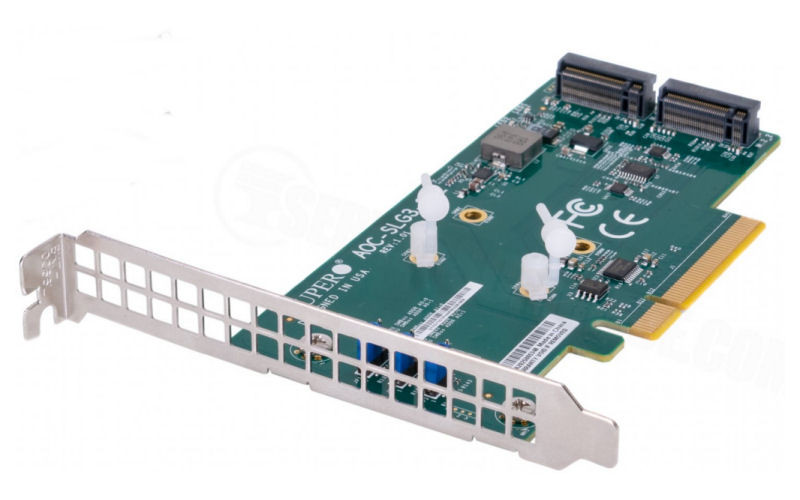

Supermicro AOC-SLG3-2M2-O M.2 NVMe M.2 SATA SSD PCIe X3 Adapter

The Supermicro NMVe AOC-SLG3-2M2 features two internal sockets for M.2 NVMe SSDs allowing any system to yield high-performance and low power storage expandability. Once populated with one or two NVMe M.2 SSDs, this robust add-on card will address the growing demand for increased storage performance and scalability for a diverse range of solutions; from entry level SMB systems to enterprise class server platforms. Ideal for embedded / IPC solutions and desk top / gaming station solutions, NVMe SSDs outperform current SAS/SATA SSDs several times over.

Form factor: PCIe 3.0 x8 low-profile card.

Adjustable stand-off supporting multiple M.2 lengths:

22x110mm
22x80mm
22x60mm

• Gen 3.0 PCI-E x8
• Supports up to 2 NVMe M.2 SSDs
• OS Support: Windows, Linux, VMWare
• M.2 Key: M-key
• Each socket supports PCI-E 3.0 x4
• Operating Temp: 10° to 55°C
