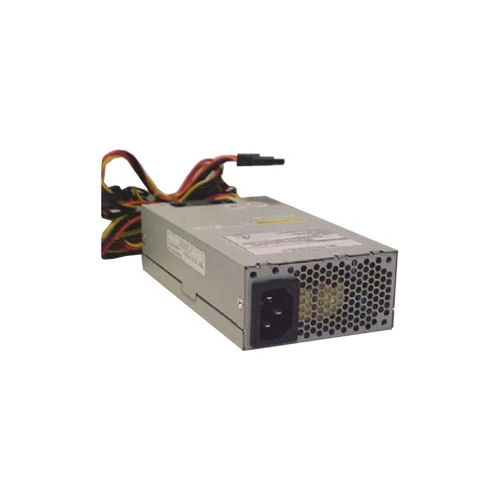

SPI SPI220LE 220W Flex ATX 20+4Pin 12V 80PLUS Power Supply

Price:
 $87.99
MPN:
 SPI220LE
Brand:
UPC:
 677808611075
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Click the button below to add the SPI SPI220LE 220W Flex ATX 20+4Pin 12V 80PLUS Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Mfr Part Number: SPI220LE
  • Features:
    • Complied with Flex ATX and ATX12V standard
    • Active Power Factor Correction (PFC) meet EN61000-3-2
    • High efficiency and reliability
    • Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances)
    • Remote ON/OFF function
    • Internal 12V DC fan included
    • Noise Killer (thermal fan speed control function)
    • Low noise and ripple
    • Output over voltage, short circuit, and over current protection
    • 100% Hi-pot, ATE, and burn-in tested
    • Re-settable power shut down
    • Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
    • Approved by UL60950, CSA C22.2 NO. 60950, TUV EN60950 or VDE EN60950, NEMKO EN60950 (CB Report) CE
  • Input:
    • Input Range: 90 ~ 264Vac (RMS), Full Range Input
    • Frequency: 47 ~ 63Hz
    • Input Current: Max 5A (RMS) @ 115Vac, 3A (RMS) @ 230Vac
    • Inrush Current: No damage at cold start
  • Output: +3.3V @ 14A, +5V @ 16A, +12V1 @ 16A, +12V2 @ 10A, -12V @ 0.8A, -5VSB @ 2.5A
  • Efficiency: 80% Minimum, Typical up to 87%
  • Rise Time: Less than 20ms
  • Hold-up Time: 17ms minimum at nominal input voltage
  • Power Good Signal: Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible)
  • Leakage Current: Less than 3.5mA at 264Vac, 50Hz
  • MTBF: 100,000 hours on maximum load at +25°C
  • Dimensions (WxLxH): 3.2 x 6.0 x 1.6 inch / 81.5 x 150.0 x 40.5 mm
  • RoHS Compliant
