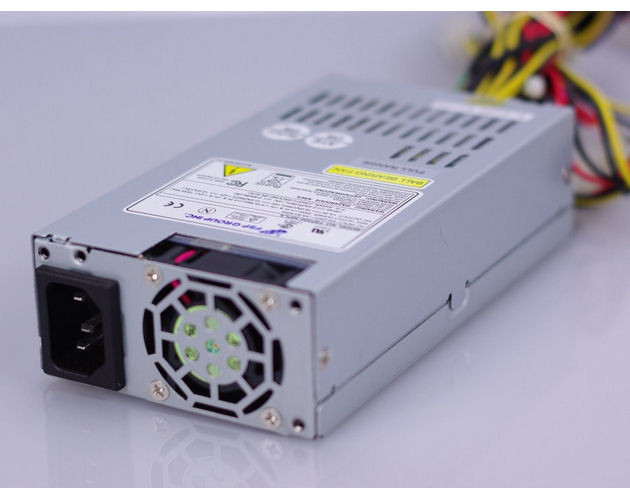

Sparkle FSP200-50PLAR-B 200W Flex-ATX12V Power Supply

Price:
 $57.00
MPN:
 FSP200-50PLAR-B
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Click the button below to add the Sparkle FSP200-50PLAR-B 200W Flex-ATX12V Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Mfr Part Number: FSP200-50PLAR-B
  • Features:
    • Complied with Flex ATX and ATX12V standard
    • Active Power Factor Correction Meeting with EN61000-3-2
    • High efficiency and reliability
    • Remote On/Off function
    • Internal 12V DC fan included
    • Noise Killer (Thermal fan speed control function)
    • Low noise and ripple
    • Complies with FCC part 15 subpart J Class B and CISPR 22 Class B
    • Output over voltage, short circuit, and over current protection
    • 100% Hi-pot, ATE, and burn-in tested
    • Re-settable power shut down
    • Approved by UL 1950, CSA C22.2 Level 3, TUV EN60950, NEMKO (CB Report), CE
  • Input:
    • Voltage: 90~264V AC, Full Range Input
    • Frequency: 47 ~ 63Hz
    • Input current: 4A (RMS) @115V AC, 2A (RMS) @230V AC
    • Inrush current: 50A Max for 115V AC, 80A Max for 230V AC Cold start
  • Hold-up time: 17ms minimum at nominal input voltage
  • Dielectric withstand: Input to frame ground 1800V AC for 1 second
  • Efficiency: 68% at minimum measured at nominal AC main voltage and frequency with maximum load on all output
  • Dimension (WxLxH): 3.2 x 6 x 1.6 inches / 81.5 x 150 x 40.5 mm

Other Details

MPN:
FSP200-50PLAR-B
