SNT SNT-SAC3141TL 4 x 3.5in HDD SAS/SATA Trayless Backplane

Price:

$77.00

MPN:

SNT-SAC3141T

Brand:

SNT

Condition:

NEW

Availability: Ships in 2 business days

Ships in 2 business days

Shipping:

Calculated at checkout

Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Product Description

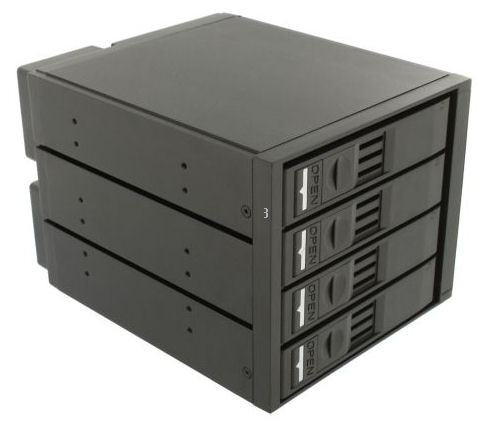

The SNT-SAC3141TL is a high capacity backplane RAID cage for both SAS and SATA. It is a 4 x 3.5” Hard Drive in 3 x 5.25” bay backplane raid cage that supports up to 8TB in total. It is tray-less. It transfers up to 3Gbps for SAS & SATA-II and 1.5Gbps for SATA-l.

Created with aluminum and supported by double 50mm cooling fans, the system stays cool. Mechanical sliding locks are designed to further protect your storage hardware. It has hot swap ability and requires no software installations.

Specifications

Interface: SATA/SAS [SAS support: Primary channel]
Drive Bays: 3 x 5.25 Bay for 4 HDD
HDD Support: SATA-I, SATA-II & SAS [ 1.5Gb / 3.0Gb ]
Connectors: 4 x 7pin data connectors( primary)
3 x 4pin power connectors
HDD Mounting: Screwless & Trayless HDD mounting and easy for HDD swap in/out
Hot Plug: Yes
Cooling fan: 2 x 50mm
Material: Aluminum Body & plastic front bezel
Lock: Mechanical sliding lock
LED: LED for Power
Color: Black

Features

: Maximum Capacity up to 8TB (4 x 2TB HDD)

Transfer rate up to 3 Gbps (SAS & SATA-II)

RAID Level: 0 / 1 / 5 / 6 / 10

Trayless design, economical solution for data backup

Stylish Blue LED light

Mechanical sliding lock for each bay

Aluminum Material & plastic front bezel

Support SATA-I, SATA-II & SAS HDD

Generally accepted for rack mount, IPC, Sever cases, desktop

With 2 x 50mm cooling fan for efficient air-ventilation (Replaceable)

Multi-bay enclosures for RAID application(*need extra Raid controller)

Gear-wheel linking design for taking out the HDD
