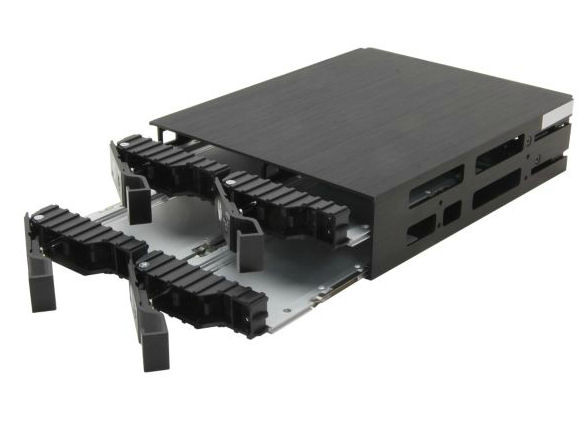

SNT SNT-BPSS425A 4x2.5in SATA/SAS HDD/SSD All Aluminum RAID Backplane

SNT-BPSS425A is a high-level Raid and high-storage availability in compact design. SNT-BPSS425A adds extra storage
and hot-swap capability to satisfy any application needs. Created with aluminum, it provides excellent heat sink and
protection to the storage hardware. It is an ideal solution for internal server RAID and JBOD application.

It is a 4 x 2.5” Hard Drive in 1 x 5.25” bay backplane raid cage that supports up to 8 TB in total. It is compatible with both
SAS and SATA interfaces. It transfers up to 6Gbps. Blue power LEDs continuously report hard drive activity. It has hot-swap
ability and Plug & Play. All aluminum material solid construction design is for the best heat dissipation. Support HDD
Thickness to 9.5mm.

Interface: Support SATA-I/ II/III SAS Primary Channel
- 4 x 2.5” HDDs (SSDs) to 1 x 5.25” Bay
- 15 Pin SATA Power Connector x 1
- Overheating & Fan failure LED indicating
- With HDD LED Switch
- Cooling fan: Built-in 2 x 40mm fans
- Aluminum Bodyand Trays
- Triangle mental key lock design
- Patented anti-vibration guide rails design
- Dim: 185mm (L) x 146mm (W) x 42mm (H)
- 7.28”(L) x 5.75”(W) x 1.66”(H)
