Introduction

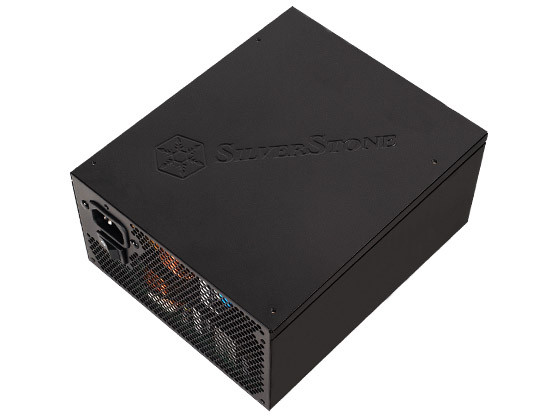

As SilverStonefs premier power supply series designed for heavy duty server and workstation use, the Zeus line now tops 1200W plateau with even greater performance levels. The customary output at stringent 50‹C high temperature and 90V AC input have been retained while voltage regulation now improves to }1% for truly outstanding stability. For enthusiasts that wish to take advantage of server class power supply without being limited to multi-rail design, the ZU1200M has rail merging switch to convert its +12V power output into one single rail for greater flexibility. So whether the use is for serious work or play, the ZU1200M is ready to deliver.
Special Feature
Class-leading six or single +12V rail(s) with 95A
Adjustable switch for six or single +12V rail(s) operation
1200W continuous power output rated up to 50Ž
Low ripple & noise with }1% voltage regulation
Efficiency greater than 80%
Japanese Capacitors
Dual PCI-E 8pin, quad PCI-E 6pin, and six SATA connectors
Support ATX 12V 2.3 & EPS 12V
Specifications |
Model No. |
SST-ZU1200M
|
Max. DC Output |
1200W
|
Load Range (Multiple rails for +12V) |
|
+3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
+12V4 |
+12V5 |
+12V6 |
-12V6 |
+5VSB |
Max.(Amps)
|
28A |
30A |
17A |
17A |
17A |
17A |
17A |
17A |
0.5A |
4A |
Min.(Amps)
|
0A |
1A |
0.8A |
0.8A |
0.8A |
0.8A |
0.8A |
0.8A |
0A |
0.1A |
Range (%)
|
}3% |
}3% |
}3% |
}3% |
}3% |
}3% |
}3% |
}3% |
}5% |
}5% |
Line Reg.(%)
|
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
Ripple(mVp-p)
|
50mV |
50mV |
120mV |
120mV |
120mV |
120mV |
120mV |
120mV |
120mV |
50mV |
Load Range (Single rails for +12V) |
|
+3.3V |
+5V |
+12 |
-12V |
+5VSB |
|
28A |
30A |
95A/1180W |
0.5A |
4A |
|
0A |
1A |
3A |
0A |
0.1A |
|
}3% |
}3% |
}3% |
}5% |
}5% |
|
}1% |
}1% |
}1% |
}1% |
}1% |
|
50mV |
50mV |
120mV |
120mV |
50mV |
|
|
combined +3.3, +5V |
180W
|
combined +12V |
95A / 1180W
|
Input Voltage |
90V~264V
|
Input Frequency Range |
47Hz ~ 63Hz
|
PFC |
Active PFC.iPF>0.99 at Full Loadj
|
Efficiency |
80%.iTypical Loadingj
|
MTBF |
100,000 hours at 25Ž.iat Full Loadj
|
Operating temperature |
0‹C ~ 50‹C
|
Protection |
Over Current Protection. Over Power Protection. Under Voltage Protection. Over Voltage Protection. Short Circuit Protection.
|
Connectors |
1 x 24-Pin Motherboard connector.i550mmj 1 x 8-Pin EPS12V connector.i750mmj 1 x 8/4-Pin EPS/ATX 12V connector.i750mmj 4x 6-Pin PCIE connector.i550mm / 150mmj 2x 8/6-Pin PCIE connector.i550mmj 6x SATA connector.i500mm / 250mm / 250mmj 6x 4-Pin Peripheral connector.i500mm / 250mm / 250mmj 2x 4-Pin Floppy connector.i500mm / 250mm / 250mm / 150mmj
|
Color |
Black.iLead-Free Paintj
|
Cooling System |
Single 80mm ball bearing fan.
|
Noise Level |
22dBA@300W 28dBA@600W 40dBA@1200W
|
Dimension |
150 mm (W) x 86 mm (H) x 180 mm (D)
|
Other |
|
|
