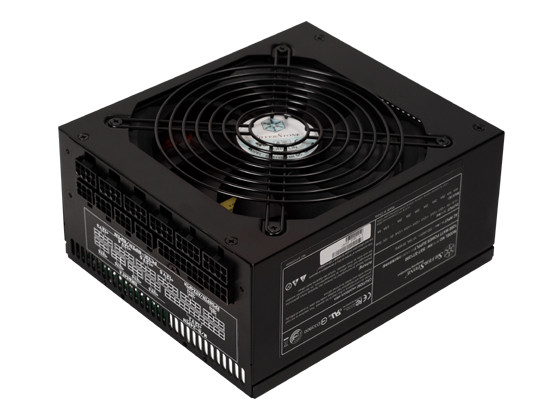

Silverstone ST1200 1200W Strider Series Compact ATX Power Supply

Price:
 $259.00
MPN:
 ST1200
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Click the button below to add the Silverstone ST1200 1200W Strider Series Compact ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

Introduction
Continuing on with venerable features of SilverStone Strider series, the ST1200 is an excellent power supply which can reach 1200 Watt output with efficiency greater than 80% and with 100% modular cable system. Its full array of amenities such as dual PCI-E 8pin, six PCI-E 6pin, and six SATA connectors can support various power usage and up to three high-end graphic cards easily. Cooled by a quiet 135mm fan, the ST1200 is an awe-inspiring power supply with exceptional stability and optimal efficiency.



Special Feature
100% modular cables with cable bag
Efficiency greater than 80% (Max. 88%)
Class-leading six +12V rail(s) with 94A
1200W continuous power output rated up to 40Ž
Silent running 135mm Fan with 19dBA
Japanese Capacitors
Dual PCI-E 8pin, six PCI-E 6pin, and six SATA connectors
Support ATX 12V 2.3 & EPS 12V
Active PFC
Model No.
SST-ST1200
 Max. DC Output
1200W
Load Range

 +3.3V +5V +12V1 +12V2 +12V3 +12V4 +12V5 +12V6 -12V +5VSB
Max.(Amps)
 40A 40A 28A 28A 20A 20A 20A 28A 0.8A 6A
Peak (Amps)
 40A 40A 28A 28A 20A 20A 20A 28A 0.8A 6A
Min.(Amps)
 0.8A 0.5A 0.5A 0.5A 0.5A 0.5A 0.5A 0.5A 0.02A 0.05A
Range (%)
 }5% }5% }5% }5% }5% }5% }5% }5% }10% }5%
Line Reg.(%)
 50mV 50mV 120mV 120mV 120mV 120mV 120mV 120mV 120mV 50mV
 combined +3.3, +5V
250W
 combined +12V
94A / 1128W
 Input Voltage
90V~264V
 Input Frequency Range
47Hz ~ 63Hz
 PFC
Active PFC.iPF>0.99 at Full Loadj
 Efficiency
80% ~ 87%( 20% ~ 100% Loading)
 MTBF
100,000 hours at 25‹Ciat Full Loadj
 Operating temperature
0‹C ~ 40‹C
 Protection
Over Current Protection
Over Power Protection
Under Voltage Protection
Over Voltage Protection
Short Circuit Protection
 Connectors
1 x 24-Pin motherboard connector.i550mmj
1 x 8-Pin EPS12V connector.i750mmj
1 x 8/4-Pin EPS/ATX 12V.i750mmj
4x 6-Pin-PCIE.i550mm / 150mmj
2x 8/6-Pin-PCIE.i550mmj
6x SATA.i500mm / 250mm / 250mmj
6x 4-Pin Peripheral.i500mm / 250mm / 250mmj
2x 4-Pin Floppy.i500mm / 250mm / 250mm / 150mmj
 Color
Black.ilead-free paintj
 Cooling System
Single 135mm ball bearing fan.
 Noise Level
19 dBA minimum.
 Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)
 Certification
80 PLUS / CrossFire
 Other





Other Details

MPN:
ST120
