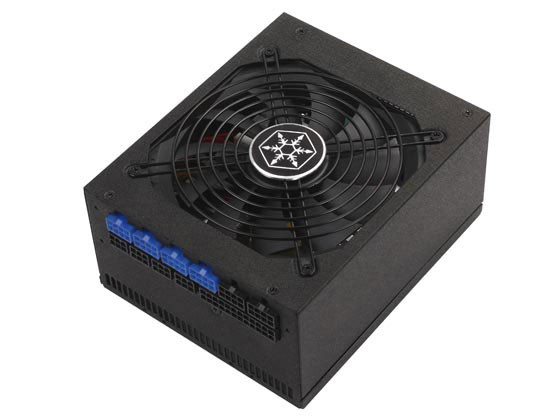

To meet the ever higher requirements imbued by professional users and enthusiasts alike, SilverStone created the Strider Gold series power supplies. The Strider Gold models are built on similar platform as the award-winning Strider Plus series but with even higher efficiency ratings. The Strider Gold series will encompass wattage range from 750W to 1200W for a great variety of applications. In addition to 80 PLUS Gold level efficiency, all models are built to meet very high standards in electrical performance so they have }3% voltage regulation, }3% ripple & noise, and high amperage single +12V rail. Other notable features also included are 24/7 40Ž continuous output capability, Japanese capacitors, low-noise 135mm fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of performance, efficiency, and quality, there is no need to look beyond the Strider Gold Series.
Special Feature
80 PLUS Gold certification with high efficiency 87%~90% at 20%~100% loading 100% modular cables 1000W (1100W peak power) 24hour fully continuous power output with 40Ž operating temperature Class-leading single +12V rail with 83A Strict }3% voltage regulation and low ripple & noise Japanese main capacitors Silent running 135mm fan with 19dBA minimum Dual EPS 8pin connectors support Multiple PCI-E 8pin and PCI-E 6pin connectors support Support ATX 12V 2.3 & EPS 12V Active PFC
Remark
Design for 80 PLUS Gold level of efficiency to reduce wasted heat and save electricity.
100“ modular cable design for use with short cable kit such as SilverStonefs PP05 or for easy removal in case with cable routed and tied down.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
}3% regulation and low ripple & noise performance for high stability.
Built-in 135mm fan has excellent airflow and low noise, perfect for quiet home or office use.
To reduce electrical whine/buzz associated with high performance graphics cardfs dynamic loading changes, 2200uF capacitors are attached to PCI-E connectors. This design also helps to maintain better voltage stability and improve ripple & noise performance.
Specifications
Model No.
SST-ST1000-G
Max. DC Output
1000W (Peak 1100W)
Load Range
+3.3V
+5V
+12V1
+5VSB
-12V
Max.(Amps)
25A
25A
83A
3.5A
0.3A
Min.(Amps)
0.3A
0.3A
0.1A
0.1A
0A
Range (%)
±3%
±3%
±3%
±5%
±10%
Line Reg.(%)
±1%
±1%
±1%
±1%
±1%
Ripple(mVp-p)
50mV
50mV
120mV
50mV
120mV
combined +3.3, +5V
150W
combined +12V
996W / 83A
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.(PF>0.95 at Full Load)
Efficiency
87%~90% at 20%~100% loading
MTBF
100,000 hours at 25°C(at Full Load)
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection Over Power Protection Over Voltage Protection Over Temperature Protection Under voltage protection Short Circuit Protection No Load Protection
Connectors
1 x 24 / 20-Pin Motherboard connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 4 x 8/6-Pin PCIE connector (550mm) 2 x 6-Pin PCIE connector (550mm / 150mm) 8 x SATA connector (600mm / 150mm / 150mm/150mm) 6 x 4-Pin Peripheral connector (600mm / 150mm / 150mm) 2 x 4-Pin Floppy connector (600mm / 150mm / 150mm / 150mm)
