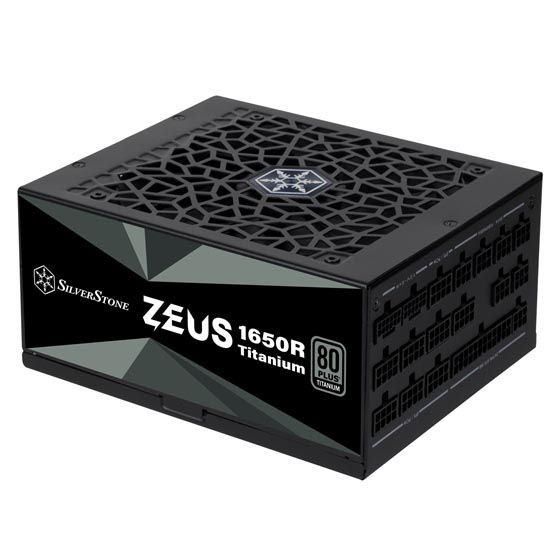

Silverstone SST-ZU1650R-TM ZEUS 1650R Titanium 80 PLUS Titanium 1650W Fully Modular ATX Power Supply

Price:
 $679.99
MPN:
 SST-ZU1650R-TM
Brand:
UPC:
 844761028251
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ZU1650R-TM ZEUS 1650R Titanium 80 PLUS Titanium 1650W Fully Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Compliant with ATX 3.1 and PCIe Gen 5 standards, supporting 12V-2x6 PCIe connectors
  • Latest PCIe Gen 5 standard to support up to 2x power excursion
  • High efficiency with 80 PLUS Titanium certification
  • 24/7 continuous power output with 50℃ operating temperature
  • Fully modular design with SilverStone’s 3rd generation modular interface
  • Silent running 135mm FDB fan with 3-type fan switch
  • All Japanese electrolytic capacitors
  • Compact design with a 180mm depth for easy system integration
Product No.
SST-ZU1650R-TM
Model (safety certification)
SST-AX1650MCTI-B
Color
Black (lead-free paint)
Max. DC Output
1650W
Power density
710.6W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 137.5A 3.0A 0.5A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±8%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 30mV 30mV 80mV
Combined +3.3V & +5V
120W
Combined +12V
1650W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥91% & <93% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
3 x 12+4-Pin 12V-2x6 connectors
12 x 8 / 6-Pin PCIe connectors
16 x SATA connectors
6 x 4-Pin Peripheral connectors
Cooling System
Silent 135mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Titanium
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 180mm (D)
5.91” (W) x 3.39” (H) x 7.1” (D)

Other Details

MPN:
SST-ZU1650R-TM
