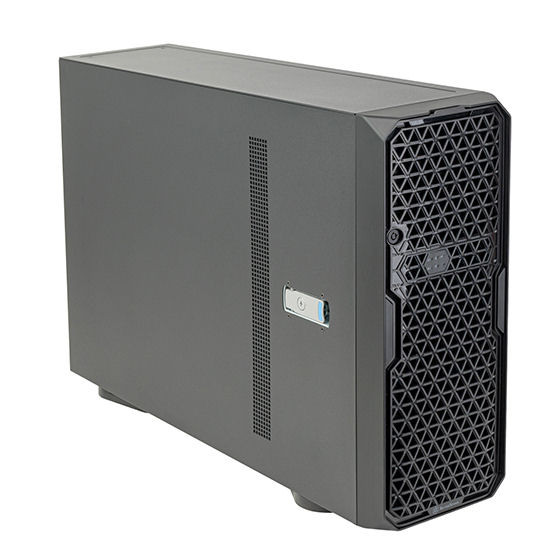

Silverstone SST-WS380-E 8-Bay SAS-4 SATA-3 Hot Swap SSI-EEB/E-ATX Chassis

Price:

$899.99

MPN:

SST-WS380-E

Brand:

SILVERSTONE

UPC:

844761029340

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

Supports 8 x 2.5"/3.5" SAS/SATA SSD/HDD hot-swappable drive trays.
Backplane supports 8-port SAS/SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO.
Supports up to E-ATX and SSI-EEB motherboard.
Supports ATX (PS2) and 2U redundant PSU.
Supports 360mm radiators.
Supports 2 x 5.25" and 1 x 3.5" drive bays.
Supports interface cards up to 370mm
Multi-GPU support with 8 PCI expansion slots.
Front door panel with lock design for additional security.
Front I/O ports: 1 x USB Type-C, 2 x USB 3.0

Model No.

SST-WS380-E

Material

Plastic front panel, Galvanized steel body

Main metal thickness

1.0~1.2mm

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

HDD backplane

backplane

8 ports SAS / SATA to Mini-SAS HD SFF-8643 x 2 with SGPIO

power connector

4-Pin peripheral x 2

interface

SAS-1 / SAS-2 / SAS-3
SATA-1 / SATA-2 / SATA-3

Drive bay

External

2.5” / 3.5” SAS / SATA external hot-swapping x 8
5.25" x 2
3.5" x 1

Cooling system

Rear

80mm x 2 (8038 x 2 black fans included)

Internal

120mm x 3 (12025 x 3 black fans included)

Radiator support

Internal

120mm / 240mm / 360mm

Limitation of CPU cooler

w/ GPU holder: 134mm
w/o GPU holder: 145mm

Expansion slot

Limitation of expansion card

Length

370mm

Width

150mm

Power supply

PS2 (ATX) / 2U Redundant

Front buttons

Power On / Off, system reset

Front I/O port

USB Type-C x 1
USB 3.0 x 2
SPK x 1
MIC x1

LED Indicators

Chassis

Power LED x 1: Green
HDD Access x 1: White
LAN LED x 2: Green
UID x 1:White
Sys Error : Red

HDD Tray

HDD Power LED : Green
HDD Access : Blue blinking

Dimension

453mm (H) x 175mm (W) x 683mm (D)
17.83" (H) × 6.89" (W) × 26.89" (D)

Extra

* The internal USB 3 Type-C cable is 800mm in length. If you plan to connect external storage devices, please avoid using excessively long external cables to prevent potential speed reduction.
