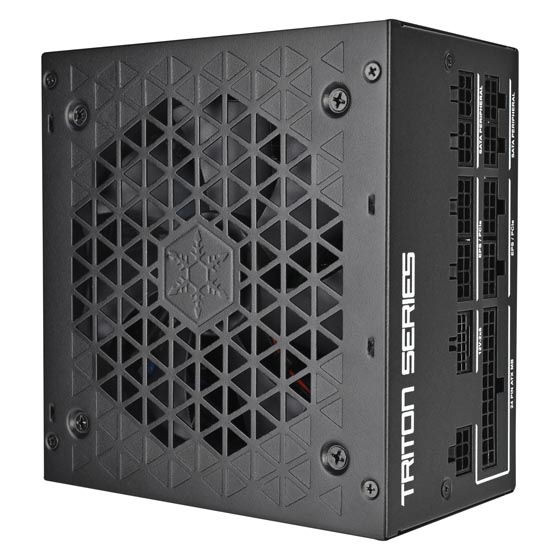

Silverstone SST-TR1000R-GM Cybenetics Gold 1000W PCIe 5 Fully Modular ATX Power Supply

Price:
 $199.99
MPN:
 SST-TR1000R-GM
Brand:
UPC:
 844761028671
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-TR1000R-GM Cybenetics Gold 1000W PCIe 5 Fully Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Equipped and compatible Intel ATX 3.1 specification standard with Gen5 12V-2x6 PCIe connector
  • Latest PCIe Gen 5 standard to support up to 2X power excursion
  • Silent running 120mm FDB cooling fan
  • Black embossed cable design.
  • Full Japanese electrolytic capacitors
  • High efficiency with Cybenetics Gold certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Compact design with a 140mm depth for easy integration
Max. DC Output
1000W
Power density
553.7W/L
Load Range
Output +3.3V +5V +12V1 +5VSB -12V
Max.(Amps) 20A 20A 83.3A 3.0A 0.3A
Peak (Amps) / / / / 3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 40mV 30mV 50mV
Combined +3.3V & +5V
110W
Combined +12V
1000W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
≥87% to <89% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection

Over current protection

Over voltage protection

Short circuit protection

Over Temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

1 x 12+4-Pin 12V-2x6 connector

4 x 8 / 6-Pin PCIe connector

8 x SATA connector

4 x 4-Pin Peripheral connector
Cooling System
Single 120mm FDB fan
Noise Level
18 dBA min.
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)

Other Details

MPN:
SST-TR1000R-GM
