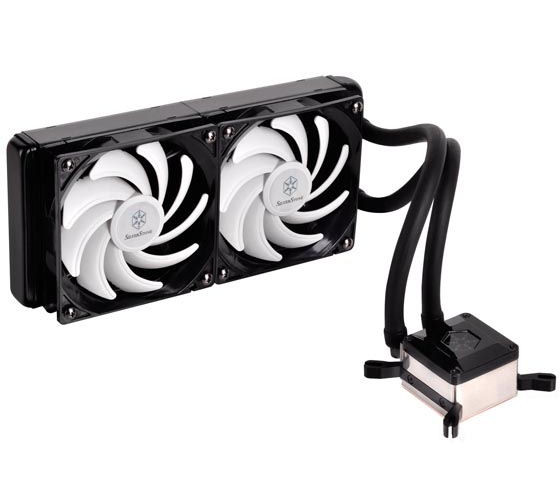

Silverstone SST-TD02-E-V2 (AM4) Dual 120mm Fan Liquid Cooling Kit

Price:
 $107.00
MPN:
 SST-TD02-E-V2
Brand:
UPC:
 844761015084
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Silverstone SST-TD02-E-V2 (AM4) Dual 120mm Fan Liquid Cooling Kit to your wish list.

SHARE

Product Description

■ Easy installation with aluminum clips and steel back-plate

■ Maintenance free, no refill required

■ Dual auto adjustable 120mm PWM fans included

■ Durable alloy water-block for improved reliability

■ Patented brazing fins radiator increase cooling efficiency by 40%

■ Compatible with socket LGA775/115X/1366/2011/2011-v3/AM2/AM3/FM1/FM2

■ Compatible with socket LGA775/115X/1366/2011/2011-v3/AM2/AM3/AM4/FM1/FM2 (V2)



  The Tundra TD02-E is SilverStone’s premier all-in-one liquid cooler and is a breakthrough in a market segment filled with similar-looking products. Its unique alloy water-block is constructed with copper base and aluminum body for better durability compared to plastic-built competitions. The block also has a patented design that eliminates screws in its construction to provide excellent cooling performance and integration of mounting bracket for easy installation. The radiator has another patented design that utilizes brazing fins similar to those used in top air coolers for increased heat transfer efficiency by up to 40% over traditional radiators. With it fully assembled, factory filled and sealed, the TD02-E can be used immediately with no need to refill. For those looking to finally have a unique all-in-one liquid cooler that is durable and well-constructed, the TD02-E is definitely it.

* White LED water blocks are produced from serial numbers BT16400001 and after.





Water block Dimension 60mm (L) x 55mm (W) x 33.5mm (H)
2.36" (L) x 2.17" (W) x 1.32" (H)
Material Copper base with nickel-plated aluminum unibody
Pump Motor speed 2500±200RPM
Rated Voltage 12V
Rated Current 0.28A
Fan Dimension 120mm (L) x 120mm (W) x 25mm (D)
4.72" (L) x 4.72" (W) x 0.98" (D)
Speed 1500~2500RPM
Noise level 18~35 dBA
Rated Voltage 12V
Rated Current 0.3A
Max airflow 92.5CFM
Pressure 3.5mm/H2O
Connector 4 Pin PWM
Radiator Dimension 278mm (L) x 124mm (W) x 27mm (H)
10.94" (L) x 4.88" (W) x 1.06" (H)
Material Aluminum
Tube Length 310mm
Material Rubber
Application Intel Socket LGA775/115X/1366/2011/2011-v3
AMD Socket AM2/AM3/*AM4/FM1/FM2
Net Weight 1501g
