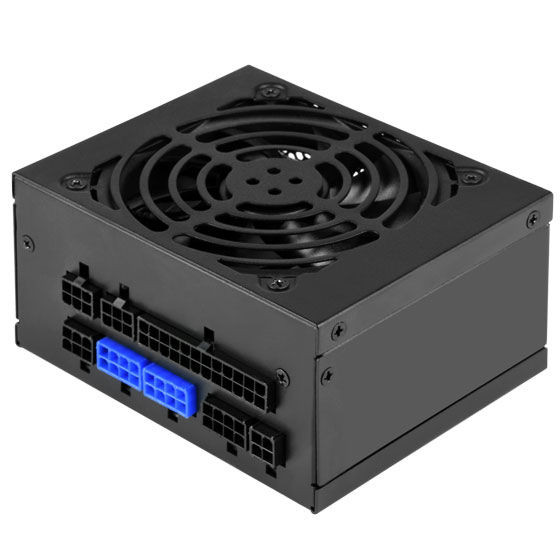

Silverstone SST-SX500-G SFX 500Watt 92mm Fan Modular Power Supply

Price:
 $129.00
MPN:
 SST-SX500-G
Brand:
UPC:
 844761015336
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-SX500-G SFX 500Watt 92mm Fan Modular Power Supply to your wish list.

SHARE
Pin It

Product Description

￭ Support standard SFX form factor

￭ Silent running 92mm fan with 18 dBA minimum

￭ All Japanese capacitors

￭ High efficiency with 80 PLUS Gold certification

￭ Class-leading single +12V rail

￭ Strict ±3% voltage regulation and low ripple & noise

￭ 100% modular cables

￭ All cables made with flexible flat arrays



Model No.
SST-SX500-G
Max. DC Output
500W
Power density
630W per liter
Load Range

 +3.3V +5V +12V1 +5VSB -12V
Max.(Amps)
 22A 22A 41.7A 2.5A 0.3A
Peak (Amps)
 / / / / /
Min.(Amps)
 0A 0A 0A 0A 0A
Range (%)
 ±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mA 50mA 120mV 50mV 120mV
Color
Black (Lead-Free Paint)
combined +3.3, +5V
110W
Combined +12V
500W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87%~90%（20% to 100% loading）
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)
1 x 8 / 6-Pin PCIE connector (400mm)
1 x 8 / 6-Pin PCIE connector (550mm)
6 x SATA connector ("300mm / 220mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)
Cooling System
Single 92mm silent fan
Form factor  SFX
Noise Level
18 dBA minimum
Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)
Weight
1.35 kg
Certification
80 PLUS Gold
Other

Compatible with ATX12V v2.4
