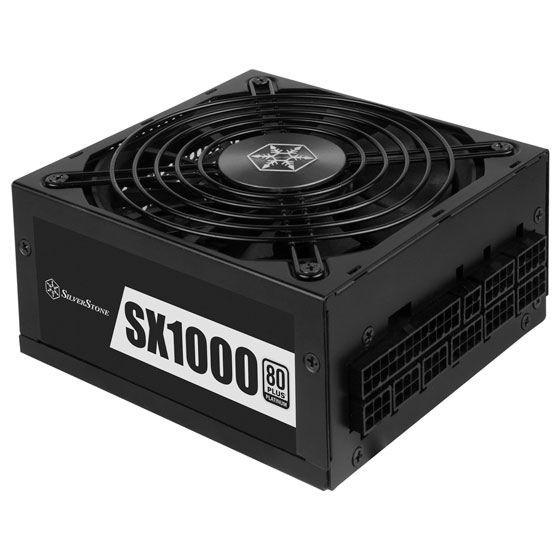

Silverstone SST-SX1000-LPT (V1.1) SX1000 80 PLUS Platinum 1000W Fully Modular SFX-L Power Supply

Price:
 $299.99
MPN:
 SST-SX1000-LPT
Brand:
UPC:
 844761020217
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Click the button below to add the Silverstone SST-SX1000-LPT (V1.1) SX1000 80 PLUS Platinum 1000W Fully Modular SFX-L Power Supply to your wish list.

SHARE

Product Description

■ SFX-L form factor for use in small form factor computers

■ 1000W continuous power output rated for 24/7 operation

■ Class-leading single +12V rail with 83.3A

■ High efficiency with 80 PLUS Platinum certification

■ Silent running 120mm dual ball bearing fan with advanced semi-fanless operation

■ 100% modular short cables with flexible flat arrays

■ Strict ±3% voltage regulation and low ripple & noise

■ 24/7 continuous power output with 50℃ operating temperature

■ High quality construction with all Japanese capacitors

Model (on safety)
SST-SX1000-LPT
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
125W
Combined +12V
999.6W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
89% ~ 92% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector(300mm)
2 x 8 / 4-Pin EPS / ATX 12V connector("400mm" x 2)
6 x 8 / 6-Pin PCIE connector("400mm / 150mm" x 3)
8 x SATA connector("300mm / 200mm / 100mm / 100mm" x 2)
3 x 4-Pin Peripheral connector(300mm / 200mm / 200mm)
1 x 4-Pin Floppy adapter connector(100mm)
Cooling System
Single 120mm dual ball bearing fan
Form factor
Noise Level
0 ~ 36 dBA
Dimension
125 mm (W) x 63.5 mm (H) x 130 mm (D)
4.92" (W) x 2.5" (H) x 5.12" (D)
Weight
1.68 Kg
Certification
80 PLUS Platinum

Other Details

MPN:
SST-SX1000-LPT
