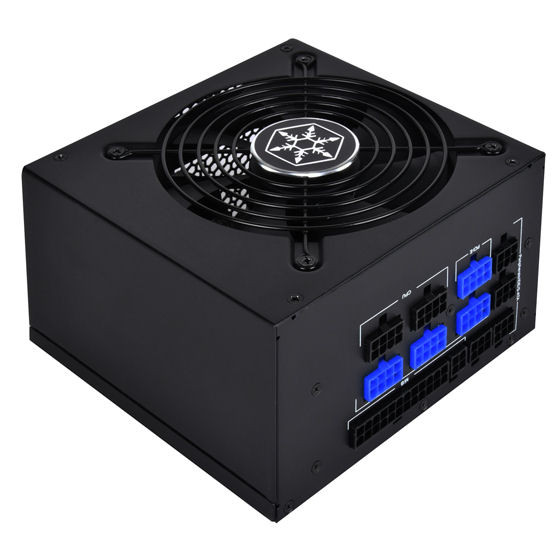

Silverstone SST-ST85F-GS-V2 850W 80 PLUS Gold Modular Power Supply

Price:
 $179.00
MPN:
 SST-ST85F-GS-V2
Brand:
UPC:
 844761016401
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ST85F-GS-V2 850W 80 PLUS Gold Modular Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Compact design with a depth of 140mm for easy integration
  • 80 PLUS Gold certification
  • 100% modular cables
  • 24/7 continuous power output with 40℃ operating temperature
  • Class-leading single +12V rail
  • Strict ±2.5% voltage regulation and low ripple & noise (V2.0)
  • Silent running 120mm fan with 18dBA minimum



Model No.
SST-ST85F-GS (V2.0)
Max. DC Output
850W
Load Range (V2.0)
  +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 70.9A 2.5A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±2.5% ±2.5% ±2.5% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 30mV 30mV 50mV
Power density
471W per liter
Color
Black (lead-free paint)
Combined +3.3V & +5V
120W
Combined +12V
850W
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.（PF>0.95 at Full Load）
Efficiency
87%~90% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Over temperature protection
Under voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（600mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（550mm）
4 x 8/6-Pin PCIE connector（”550mm/150mm” x 2）
2 x 8/6-Pin PCIE connector (550mm x 2)
8 x SATA connector（"600mm /150mm / 150mm / 150mm" x 2）
6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” x 2）
2 x 4-Pin Floppy connector（100mm x 2）
Cooling System
Single 120mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.55 kg
Certification
80 PLUS Gold

Other Details

MPN:
SST-ST85F-GS-V2
