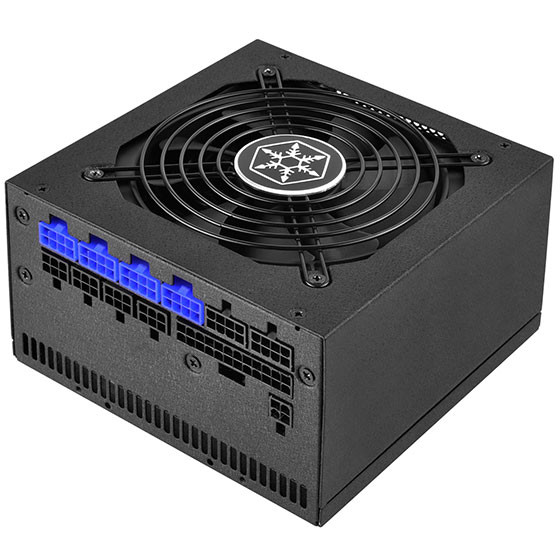

Silverstone SST-ST70F-TI 80 PLUS Titanium 700Watt Compact Modular ATX Power Supply

Price:
 $189.00
MPN:
 SST-ST70F-TI
Brand:
UPC:
 844761012861
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Silverstone SST-ST70F-TI 80 PLUS Titanium 700Watt Compact Modular ATX Power Supply to your wish list.

SHARE

Product Description

■ High efficiency with 80 PLUS Titanium certification

■ Compact design with a depth of 150mm for easy integration

■ All Japanese capacitors

■ 100% modular cables

■ 24/7 continuous power output with 40℃ operating temperature

■ Class-leading single +12V rail

■ Strict ±3% voltage regulation and low ripple & noise

■ Silent running 120mm fan with 18dBA minimum



Introduced in 2012, the 80 PLUS Titanium represent the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. This stringent standard makes mass producing 80 PLUS Titanium certified power supplies below 1000W extremely challenging. However, as a leader in power supply miniaturization, SilverStone successfully mass-produced a new line of power supplies ── the Strider Titanium series. Their compact design makes them the world's smallest fully modular ATX power supplies with 80 PLUS Titanium efficiency. Other enthusiasts features included are all Japanese capacitors, ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build the most efficient systems possible with great quality, the Strider Titanium is definitely the top choice.



Max. DC Output
700W (Peak 750W)
Power density
362W per liter
Load Range

+3.3V +5V +12V1 +12V2 +5VSB -12V
Max.(Amps)
22A 22A 58A / 2.5A 0.3A
Peak (Amps)
/ / / / / /
Min.(Amps)
0.1A 0.2A 0.15A / 0A 0A
Range (%)
±3% ±3% ±3% / ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% / ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV / 50mV 120mV
Color
black (lead-free paint)
combined +3.3, +5V
120W
combined +12V
696W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
90% ~ 94% at 10% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0 ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under voltage protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
4 x 8 / 6-Pin PCIE connector("550mm" x 4)
12 x SATA connector("600mm / 150mm / 150mm / 150mm" x 3)
3 x 4-Pin Peripheral connector(600mm / 150mm / 150mm)
1 x 4-Pin Floppy adapter connector (100mm)
Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Dimension
150 mm (W) × 86 mm (H) × 150 mm (D)
Weight
2.7 kg
Form factor  ATX
Certification
80 PLUS Titanium
Other

Compatible with ATX12V v2.4

Other Details

MPN:
SST-ST70F-TI
