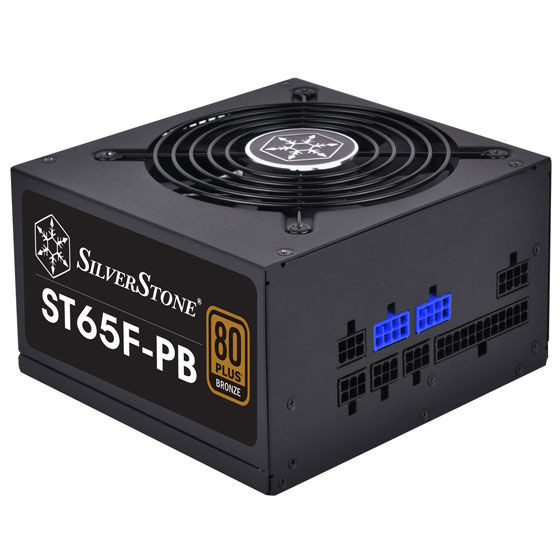

Silverstone SST-ST65F-PB 650W 80 PLUS Bronze Modular Cable ATX Power Supply

Price:
 $139.99
MPN:
 SST-ST65F-PB
Brand:
UPC:
 844761016913
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ST65F-PB 650W 80 PLUS Bronze Modular Cable ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

￭ High efficiency with 80 PLUS Bronze certification

￭ 24/7 continuous power output with 40℃ operating temperature

￭ 100% modular cables with flexible flat arrays

￭ Class-leading single +12V rail

￭ Strict ±3% voltage regulation and low ripple & noise

￭ Silent running 120mm fan with 18dBA

￭ PCIe 8/6pin connectors support



Model No.
SST-ST65F-PB
Max. DC Output
650W
Power density
360W per liter
Load Range

 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 18A 18A 50.8A 2.5A 0.3A
Peak (Amps)
 / / / / /
Min.(Amps)
 0A 0.2A 0.1A 0A 0A
Range (%)
 ±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 80mV 50mV 100mV
Color
Black（Lead-Free Paint）
Combined +3.3V & +5V
100W
Combined +12V
610W
Input Voltage
103 ~ 264 Vrms
Input Frequency Range
47Hz~63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
82%~85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection

Over current protection

Over voltage protection

Over temperature protection

Under voltage protection

Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（600mm）

2 x 8 / 4-Pin EPS / ATX 12V connector（750mm / 150mm）*

4 x 8/6-Pin PCIe connector（"550mm / 150mm" x 2）

8 x SATA connector（"600mm / 150mm / 150mm / 150mm" x 2）

3 x 4-Pin Peripheral connector（600mm / 150mm / 150mm）

1 x 4-Pin floppy connector（150mm）
Cooling System
Single 120mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.48 kg
Certification
80 PLUS Bronze

Other Details

MPN:
SST-ST65F-PB
