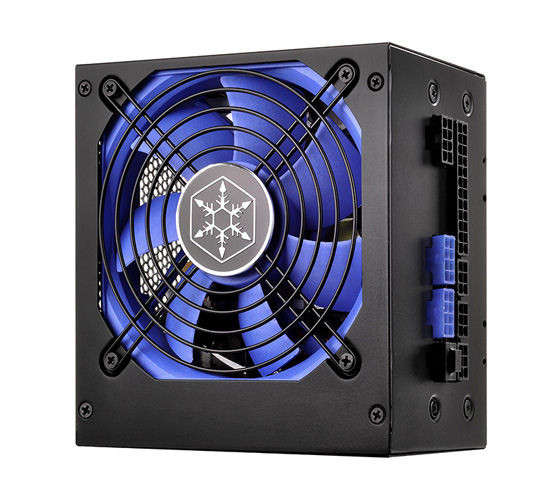

Silverstone SST-ST60F-PB 600W 80 PLUS Bronze Modular Cable ATX Power Supply

Price:
 $97.00
MPN:
 SST-ST60F-PB
Brand:
UPC:
 844761011727
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Click the button below to add the Silverstone SST-ST60F-PB 600W 80 PLUS Bronze Modular Cable ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • High efficiency with 80 PLUS Bronze certification
  • 24/7 continuous power output with 40¡É operating temperature
  • 100% modular cables
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Silent running 120mm fan with 18dBA
  • PCI-E 8pin and PCI-E 6pin connectors support
Max. DC Output
600W (Peak 650W)
                 Load Range

 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 20A 17A 46A 2.5A 0.3A
Peak (Amps)
 / / / / /
Min.(Amps)
 0.1A 0.2A 0.5A 0A 0A
Range (%)
 ±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
combined +3.3, +5V
120W
combined +12V
552W
Input Voltage
90V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC£¨PF>0.9 at full load£©
Efficiency
82%~85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector£¨550mm£©
1 x 8 / 4-Pin EPS / ATX 12V connector£¨750mm£©
2 x 8 / 6-Pin PCIE connector£¨"550mm"x2£©
2 x 6-Pin PCIE connector£¨"550mm / 150mm" x 2£©
8 x SATA connector£¨"600mm / 150mm / 150mm /150mm" x 2£©
3 x 4-Pin Peripheral connector £¨600mm / 150mm / 150mm£©
1 x 4-Pin Floppy connector£¨600mm / 150mm / 150mm / 150mm£©
Color
Black£¨Lead-Free Paint£©
Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
2.0 kg
Certification
80 PLUS Bronze



Other Details

MPN:
SST-ST60F-PB
