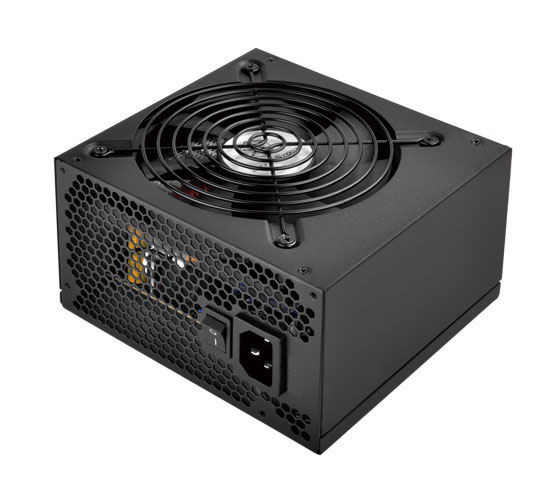

Silverstone SST-ST50F-ESB 500W 80 PLUS Bronze ATX Power Supply

Price:
 $78.99
MPN:
 SST-ST50F-ESB
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ST50F-ESB 500W 80 PLUS Bronze ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • High efficiency with 80 PLUS Bronze certification
  • 24/7 continuous power output with 40¡É operating temperature
  • Class-leading single +12V rail
  • Multiple protection circuitry
  • Silent running 120mm fan with 18dBA
  • PCI-E connectors support
  • ATX 12V 2.3 support
  • Active PFC



Max. DC Output
500W
                 Load Range

 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 20A 20A 37.5A 2.5A 0.3A
Peak (Amps)
 / / / 3.5A /
Min.(Amps)
 0.1A 0.2A 0.6A 0A 0A
Range (%)
 ±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
combined +3.3, +5V
103W
combined +12V
450W
Input Voltage
103.5 ~ 253 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC£¨PF>0.9 at Full Load£©
Efficiency
82%~85% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Power Protection
Over Voltage Protection
Under voltage protection
Short Circuit Protection
Connectors
1 x 24 / 20-Pin motherboard connector£¨500mm£©
1 x 8 / 4-Pin EPS / ATX 12V connector£¨550mm£©
1 x 8/6-Pin PCIE connector£¨500mm£©
1 x 6-Pin PCIE connector£¨500mm / 150mm£©
6 x SATA connector£¨"500mm / 150mm / 150mm" x 2£©
3 x 4-Pin Peripheral connector £¨500mm / 150mm / 150mm£©
1 x 4-Pin Floppy connector£¨500mm / 150mm / 150mm / 150mm£©
Color
Black£¨Lead-Free Paint£©
Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Dimension
150 mm (W) × 86 mm (H) × 140 mm (D)
Weight
1.75Kg
Certification
80 PLUS Bronze

Other Details

MPN:
SST-ST50F-ESB
