Silverstone SST-ST45SF-G 450W SFX/ATX Modular Power Supply

Price:
 $114.99
MPN:
 SST-ST45SF-G
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Click the button below to add the Silverstone SST-ST45SF-G 450W SFX/ATX Modular Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Support standard SFX form factor and ATX via included bracket
  • 80 PLUS Gold level efficiency (87%~90% efficiency at 20%~100% loading)
  • 100% modular cables
  • 450W continuous power output at 40¡É operating temperature rated for 24/7 operation
  • Class-leading single +12V rail with 37A
  • Strict ±3% voltage regulation and low ripple & noise
  • Silent running 80mm fan with 18dBA minimum
  • Single PCI-E 8pin and dual PCI-E 6pin connectors support
  • Active PFC
Model No.
SST-ST45SF-G
Max. DC Output
450W
Load Range

 +3.3V +5V +12V1 +5VSB -12V
Max.(Amps)
 19A 14A 37A 2.5A 0.3A
Peak (Amps)
 / / / / /
Min.(Amps)
 0A 0A 0A 0A 0A
Range (%)
 ±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mA 50mA 120mV 50mA 120mV
combined +3.3, +5V
90W
combined +12V
444W / 37A
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC£¨PF>0.90 at full load£©
Efficiency
87%~90%£¨20% to 100% loading£©
MTBF
100,000 hours at 25°C, full load
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Under voltage protection
Short circuit protection
No Load Operation

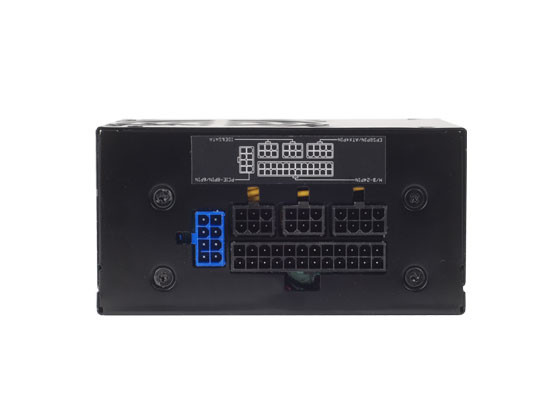

Connectors
1 x 24 / 20-Pin motherboard connector£¨300mm£©
1 x 8 / 4-Pin EPS / ATX 12V connector£¨400mm£©
1 x 8/6-Pin PCIE connector£¨400mm£©
1 x 6-Pin PCIE connector£¨400mm / 150mm£©
3 x SATA connector£¨300mm / 200mm / 100mm£©
2 x 4-Pin Peripheral connector £¨300mm / 200mm£©
1 x 4-Pin Floppy connector£¨300mm / 200mm / 200mm£©
Color
Black£¨Lead-Free Paint£©
Cooling System
Single 80mm silent fan
Noise Level
18dBA minimum
Dimension
125 mm (W) × 63.5 mm(H) × 100 mm(D)
Form factor
Certification
80 PLUS Gold
Other
Includes SFX to ATX bracket for use in ATX case
GPU Support list

Other Details

MPN:
SST-ST45SF-G
