Introduction

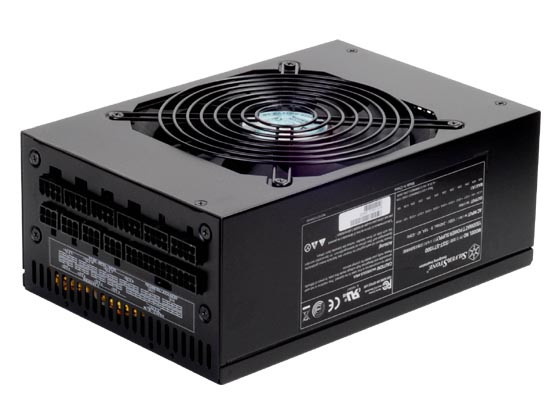

Reaching 1500W DC output (1600W peak), the Strider ST1500 is effectively at the limit of what an internal PC power supply can achieve in terms of wattage rating. For SilverStone, getting to this maximum power was only part of the goal for a consumer-level power supply so every desirable feature know were added to create a dream product. The list starts with unprecedented eight +12V rails with each capable of up to 25A and continues with features such as 100% modular cables, 80 PLUS Silver worthy efficiency ratings, and quietness level that matches most 500W PSUs. If there is one upgrade that will likely outlast a PC enthusiastfs interest in computing, the ST1500 may just be it.
Special Feature
1500W continuous and 1600W peak power
100% modular cables with cable bag
Efficiency 85%~88% at 20%~100% loading with 80 PLUS Silver certification
Class-leading eight +12V rails with 110A (Peak up to 120A)
1500W continuous power output with 40‹C operating temperature
Strict }3% voltage regulation
Silent running 135mm fan with 19dBA minimum
Japanese main capacitors
Four PCI-E 8pin, eight PCI-E 6pin, and twelve SATA connectors support
Support ATX 12V 2.3 & EPS 12V
Active PFC
Model No. |
SST-ST1500
|
Max. DC Output |
1500W (Peak 1600W)
|
Load Range |
|
+3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
+12V4 |
+12V5 |
+12V6 |
+12V7 |
Max.(Amps)
|
40A |
40A |
25A |
25A |
25A |
25A |
25A |
25A |
25A |
Peak (Amps)
|
/ |
/ |
30A |
30A |
30A |
30A |
30A |
30A |
30A |
Min.(Amps)
|
0.8A |
0.5A |
0.1A |
0.1A |
0.1A |
0.1A |
0.1A |
0.1A |
0.1A |
Range (%)
|
}3% |
}3% |
}3% |
}3% |
}3% |
}3% |
}3% |
}3% |
}3% |
Line Reg.(%)
|
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
}1% |
Ripple(mVp-p)
|
50mV |
50mV |
120mV |
120m |
120m |
120m |
120m |
120m |
120m |
|
combined +3.3, +5V |
280W
|
combined +12V |
1320W/110A (Peak 120A)
|
Input Voltage |
90V~264V
|
Input Frequency Range |
47Hz ~ 63Hz
|
PFC |
Active PFCiPF>0.95 at Full Loadj
|
Efficiency |
85%~88% at 20%~100% loading
|
MTBF |
100,000 hours at 25Žiat Full Loadj
|
Operating temperature |
0‹C ~ 40‹C
|
Protection |
Over Current Protection Over Power Protection Over Voltage Protection Under voltage protection Short Circuit Protection No Load Protection
|
Connectors |
1 x 24 / 20-Pin Motherboard connector i550mmj 1 x 8 / 4-Pin EPS / ATX 12V connector i750mmj 1 x 8-Pin EPS 12V connector i750mmj 4 x 8/6-Pin PCIE connector i550mmj 4 x 6-Pin PCIE connector i550mm / 150mmj 12 x SATA connector i500mm / 250mm / 250mmj 12 x 4-Pin Peripheral connector i500mm / 250mm / 250mmj 4 x 4-Pin Floppy connector i500mm / 250mm / 250mm / 150mmj
|
Color |
Black iLead-Free Paintj
|
Cooling System |
Silent 135mm fan
|
Noise Level |
19dBA-34dBA
|
Dimension |
150 mm (W) ~ 86 mm (H) ~ 220 mm (D)
|
Weight |
4.2Kg
|
Certification |
80 PLUS Silver
|
