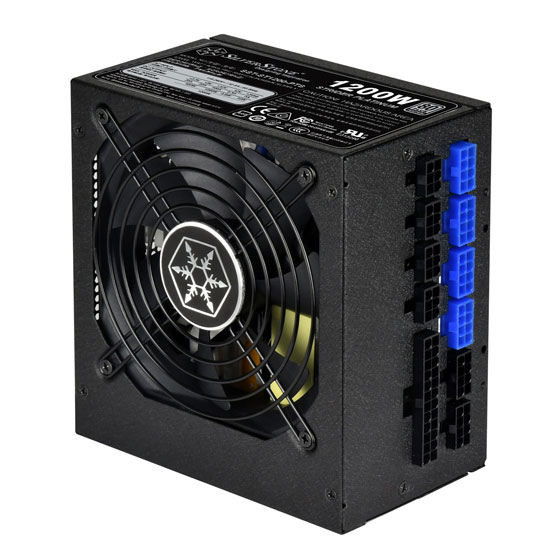

Silverstone SST-ST1200-PTS Strider 1200W 80 Plus Platinum Power Supply

Price:
 $349.00
MPN:
 SST-ST1200-PTS
Brand:
UPC:
 844761016586
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ST1200-PTS Strider 1200W 80 Plus Platinum Power Supply to your wish list.

SHARE
Pin It

Product Description

￭ Compact design with a depth of 140mm for easy integration

￭ High efficiency with 80 PLUS Platinum certification

￭ 100% modular cables

￭ 24/7 continuous power output with 40℃ operating temperature

￭ Class-leading single +12V rail

￭ Strict ±3% voltage regulation and low ripple & noise

￭ Built-in silent & durable hybrid ceramic bearing (HYB) fan

￭ FF122 magnetized fan filter included



Model No.
SST-ST1200-PTS
Max. DC Output
1200W
Power density
664W per liter
Load Range

 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 25A 22A 100A 3A 0.3A
Min.(Amps)
 0A 0A 0.15A 0A 0A
Range (%)
 ±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
Color
Black（Lead-Free Paint）
Combined +3.3V & +5V
120W
Combined +12V
1200W
Input Voltage
100V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
89%~92% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over current protection
Over voltage protection
Over Temperature protection
Under voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（”600mm”）
1 x 8 / 4-Pin EPS / ATX 12V connector（”550mm”）
1 x 8 / 4-Pin EPS / ATX 12V connector（”750mm”）
8 x 8 / 6-Pin PCIE connector（”550mm/150mm” X4）
8 x SATA connector（"600mm /150mm / 150mm / 150mm" X2）
6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” X2）
2 x 4-Pin Floppy connector（”150mm” X2）
Cooling System
Single 120mm HYB fan
Form factor  ATX
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
2kg
Certification
80 PLUS Platinum
Other

Compatible with ATX12V v2.4

Other Details

MPN:
SST-ST1200-PTS
