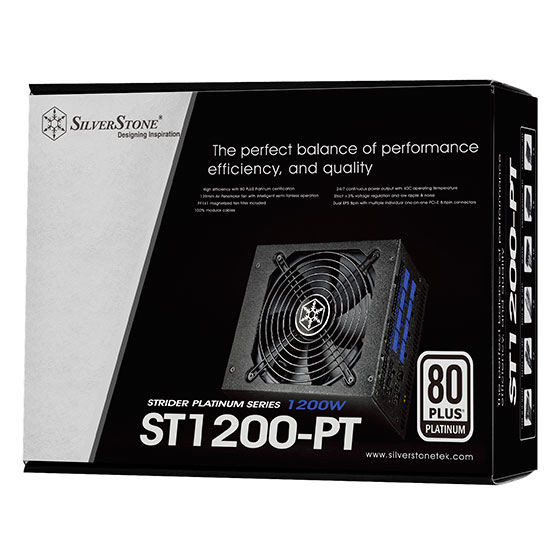

Silverstone SST-ST1200-PT Strider 1200W 80 Plus Platinum Power Supply

Price:
 $359.00
MPN:
 SST-ST1200-PT
Brand:
UPC:
 844761013240
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ST1200-PT Strider 1200W 80 Plus Platinum Power Supply to your wish list.

SHARE
Pin It

Product Description

￭ High efficiency with 80 PLUS Platinum certification

￭ 139mm Air Penetrator fan with intelligent semi-fanless operation

￭ FF141 magnetized fan filter included

￭ 100% modular cables

￭ 24/7 continuous power output with 40℃ operating temperature

￭ Strict ±3% voltage regulation and low ripple & noise

￭ Dual EPS 8pin with multiple individual one-on-one PCI-E 8/6pin connectors

Model No.
SST-ST1200-PT
Max. DC Output
1200W (Peak 1250W)
Power density
517W per liter
Load Range

 +3.3V +5V +12V +5VSB -12V
Max.(Amps)
 22A 25A 100A 2.5A 0.3A
Peak (Amps)
 / / / / /
Min.(Amps)
 0.1A 0.2A 0.15A 0A 0A
Range (%)
 ±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
Color
Black（Lead-Free Paint）
combined +3.3, +5V
120W
combined +12V
1200W
Input Voltage
105V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
89%~92% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector（550mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（550mm）
8 x 8 / 6-Pin PCIE connector（"550mm" x 8）
16 x SATA connector（"600mm / 150mm / 150mm / 150mm" x 4）
6 x 4-Pin Peripheral connector（"600mm / 150mm / 150mm" x 2）
2 x 4-Pin Floppy connector（"600mm / 150mm / 150mm / 150mm" x 2）
Cooling System
Single 139mm silent fan
Noise Level
0 ~ 36 dBA
Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)
Weight
3.3 kg
Form factor     ATX
Certification
80 PLUS Platinum
Other

Compatible with ATX12V v2.4





Other Details

MPN:
SST-ST1200-PT
