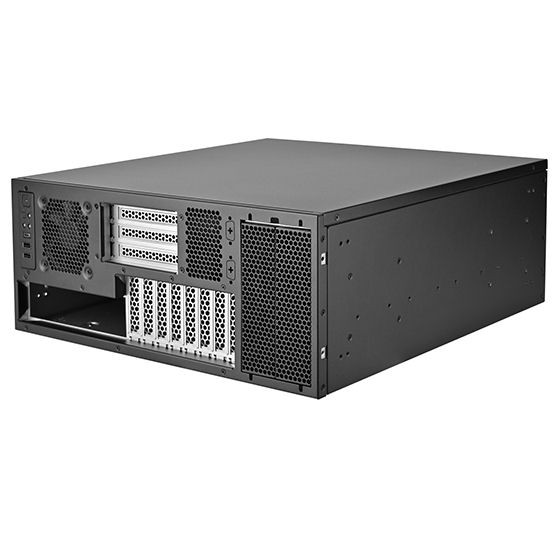

Silverstone SST-RM47-502-I 4U Interchangeable Rackmount Chassis with Front Accessible Expansion Slots

Price:
 $439.00
MPN:
 SST-RM47-502-I
Brand:
UPC:
 844761027230
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-RM47-502-I 4U Interchangeable Rackmount Chassis with Front Accessible Expansion Slots to your wish list.

SHARE
Pin It

Product Description

  • Front-facing motherboard I/O
  • Interchangeable front panel I/O, rackmount sliding rails, handlebars, 5.25” device, and PSU mounts can all be swapped between the front and back
  • 8 low-profile + 3 standard height PCI expansion slots
  • Support up to SSI-EEB motherboards
  • Supports 280mm radiator or 2 x 160mm fans*
  • 1 x USB Type-C interface
  • Upright or horizontal placement flexibility**
Model No.
SST-RM47-502-I
Chassis Form Factor
4U
Material
Steel
Motherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Drive bay
External
  • 5.25" x 2 (downwards compatible with 2.5" SSD x 4 or 3.5" HDD x 2)
Internal
  • 2.5" x 2
Cooling system
Front
  • 80mm x 1 (80mm x 1 fan included)
Rear
  • 120mm x 2 / 140mm x 2 / 160mm x 2*
Radiator support
Rear
  • 120mm x 2 / 240mm x 1 / 280mm x 1
Limitation of CPU cooler
114mm (graphics card installed on standard height slots)
148mm (no graphics cards installed on standard height slots)
Expansion slot
8 low-profile + 3 standard height
Limitation of expansion card
Length : 437mm (without rear fans and radiator installed)
Width : Standard height expansion slots: 167mm
Low-profile height expansion slots: 142mm
Power supply
PS2 (ATX) / Mini Redundant / 2U Redundant / 2U 1+1 CRPS
Limitation of PSU
PSU + ODD / 5.25" device: 430mm
Front I/O port
USB Type-C x 1
USB 3.0 x 2
LED Indicators
Power LED x 1
HDD Access x 1
LAN LED x 2

Dimension
440mm (W) x 176mm (H) x 456mm (D), 35.3 Liters
17.32" (W) x 6.93" (H) x 17.95" (D), 35.3 Liters

Other Details

MPN:
SST-RM47-502-I
