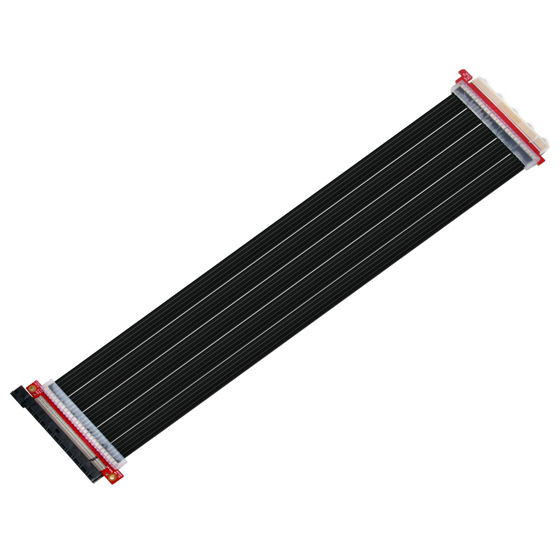

RC04 is a high-quality PCIe x 16 flexible riser ribbon cable developed primarily for the PIO chassis by SilverStone. This cable will enable the PIO based chassis to also be compatible with Mini-ITX builds that require installation of PCI Express expansion or graphics cards. In addition, it can be used for any other chassis or applications in which an extension is required for PCI Express cards.
■ High-quality ribbon cable allows graphics card installation in any direction
■ Compatible with cards up to PCI Express x16 Gen 3.0
■ High performance EMI shielding with flexible ribbon design*
Model No. | SST-RC04B-400 |
Interface | PCI Express 3.0 x16 |
Length | 400mm |
Dimension | 456mm (W) x 12mm (H) x 112mm (D) 17.95" (W) x 0.47" (H) x 4.41" (D) |
