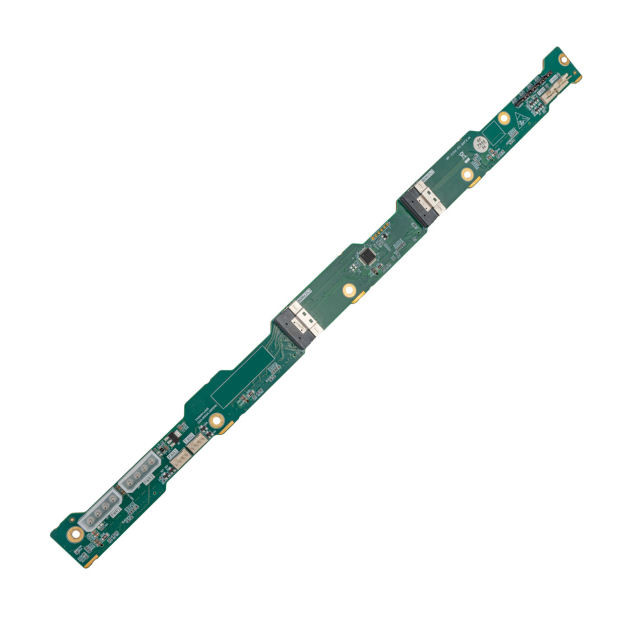

Silverstone SST-RAC-BP-304N U.2 SSD Support 4Bay Server Backplane

Price:

$189.99

MPN:

SST-RAC-BP-304N

Brand:

SILVERSTONE

UPC:

844761028435

Availability: Ships in 2 business days

.

Shipping:

Calculated at checkout

Add to Wishlist

SHARE

Product Description

*The motherboard or add-on card must support PCIe bifurcation, allowing the PCIe x16/x8 slot to be split into 4x4 or 4x2 configurations.

Supports up to 4 PCIe Gen 4 NVMe U.2 (SFF-8639) SSDs.
Compatible with RM21-304, RM21-308, RM22-308, RM22-312, RM43-320-RS, RM43-324-RS, andRM61-312 chassis.
Features a 2-port SlimSAS 8i (SFF-8654) connector for PCIe 3.0/4.0 x4, delivering speeds up to 32/64Gbps

Model No.

SST-RAC-BP-304N

Drive Support

2.5"/3.5" PCIe NVMe U.2 (SFF-8639) SSD x 4

Host Interface

2-port SlimSAS 8i (SFF-8654) connectors

Data transfer rate

Up to 32Gbps per channel (dependent on drive speed capabilities)

Power Connector

4-Pin peripheral x 2

LED Indicators

HDD Power LED x 4: Yellow
HDD Access x 4: Blinking green

Support list
