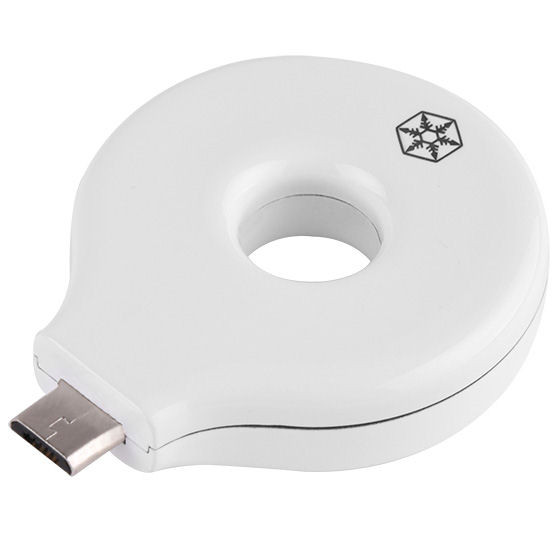

To help bring wireless charging capability to more mobile devices, SilverStone created the QIR01-M, a wireless charging receiver that adheres to the popular Qi wireless charging standard. Made to be compact, portable, and simple to use with a chic translucent design for USB Micro-B connector, it turns any Android / Microsoft mobile device or tablet into a more advanced device capable of wireless charging.
■ Plug and play design easily charge your device without cable
■ Supports Qi V1.1 standard
■ Compatible with all Android / Microsoft mobile devices with Micro USB
■ Intelligent LED indicator shows wireless charging status
■ 5V / 0.8A high current for fast charging and high compatibility
Model No. | SST-QIR01W-M |
Color | White |
Material | Plastic |
Wireless charging standard | Qi |
Frequency | 100 ~ 200 KHz |
LED indicator | Solid blue: charging and detection |
Connectors | Micro USB |
Intelligent protect system | Over Voltage Protection Over Current Protection Short Circuit Protection |
Wireless Efficiency | > 70% |
Transmission Distance | < 5mm |
Input | 5V |
Output | Wireless charging output: 5V / 0.8A (Qi compatible) |
Net weight | 15g |
Dimension | 36mm (W) x 9.6mm (H) x 46mm (D) 1.42" (W) x 0.38" (H) x 1.81" (D) |
