Silverstone SST-PI01B Raspberry Pi 3B+/3B/2B/1B+ Case

Price:

$24.99

MPN:

SST-PI01B

Brand:

SILVERSTONE

Condition:

NEW

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

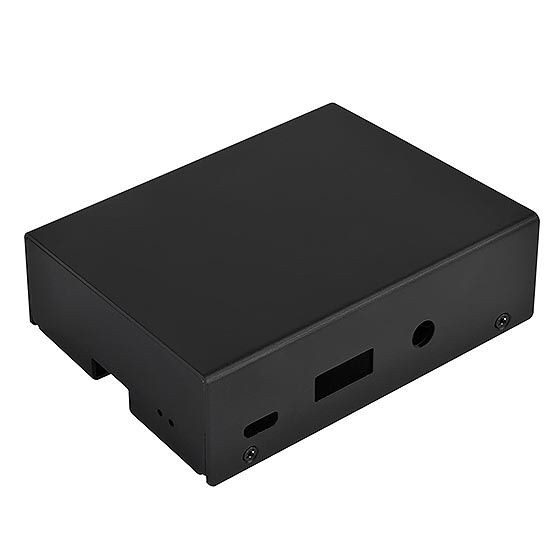

To fulfill the needs of Raspberry Pi users, SilverStone created PI01, an aluminum case compatible with Raspberry Pi 3B+/3B/2B/1B+ version. It’s easy to install and includes two heatsinks and thermal pads to help conduct heat from CPU to aluminum casing.

￭ Wall mount capable

￭ Aluminum casing designed for additional heat dissipation

￭ Two heatsinks and thermal pads included

￭ Compatible with Raspberry Pi 3B+/3B/2B/1B+ version

Model No.	SST-PI01B
Color	Black
Material	Aluminum
Support Raspberry Pi Version	Raspberry Pi 3B+/3B/2B/1B+ version
Net weight	55 g
Dimension	90 mm (W) x 28 mm (H) x 62 mm (D)

Heatsink
Material	Aluminum
Net Weight and dimension	Heatsink 1 : 9 mm (W) x 15.2 mm (H) x 9 mm (D), 2.6 g Heatsink 2 : 14 mm (W) x 15.2 mm (H) x 14 mm (D), 6.5 g

Thermal Pad
Thermal conductivity	1.5W/m.k
Operating temperature	-40 °C ~ 200 °C
Thermal pad thickness	0.5 / 1.25mm
Net Weight and dimension	Blue Pad ： 14 mm (W) x 0.5 mm (H) x 14 mm (D), 0.25 g Gray Pad 1: 14 mm (W) x 1.25 mm (H) x 14 mm (D), 0.4 g Gray Pad 2: 9 mm (W) x 1.25 mm (H) x 9 mm (D), 0.2 g
