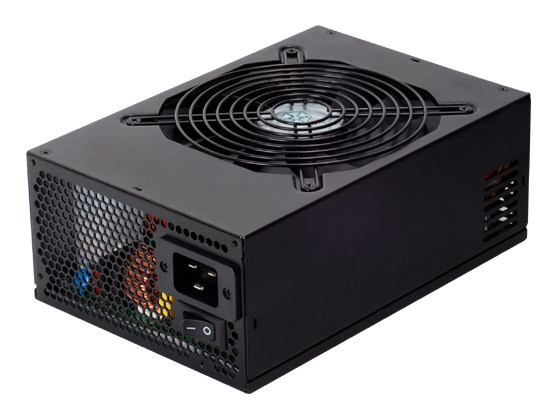

Silverstone SST-OP1200 Continuous 1200W 12V 90A ATX Power Supply

Price:
 $259.00
MPN:
 SST-OP1200
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-OP1200 Continuous 1200W 12V 90A ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

Model No.
SST-OP1200
 Max. DC Output
1200W continuous
Load Range

 +3.3V +5V +12V +5VSB -12V -5V
Max.(Amps)
 40A 40A 90A 4A 0.8A /
Min.(Amps)
 0.5A 0.5A 0.5A 0A 0A /
Range (%)
 +/-5% +/-5% +/-5% +/-5% +/-10% /
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1% /
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV /
 combined +3.3, +5V
250W (max)
 combined +12V
1080W / 90A
 Input Voltage
90V ~ 264V (Auto Range)
 Input Frequency Range
50Hz ~ 60Hz
 PFC
Active PFC (PF>0.95 at full load)
 Efficiency
>80%(at 20%~100% Loading)
 MTBF
100,000 hours at 25°C , full load
 Operating temperature
0 ~ 50°C
 Protection
Over current protection, Under voltage protection, Over voltage protection, Short circuit protection, Over power protection, Protection Reset, Over shoot
 Connectors
1 x 24-pin motherboard connector (550mm)
2 x 8-pin EPS12V connector (750mm)
1 x 4-pin ATX12V connector (750mm)
2 x 8-pin PCI-E connector (550mm)
6 x 6-pin PCI-E connector (550mm)
2 x triple SATA connector (500mm +250mm + 250mm)
2 x triple 4-pin IDE & single floppy power connectors
500mm + 250mm + 250mm + 150mm)
 Color
black (lead-free paint)
 Cooling System
Single 135mm ball bearing fan
 Noise Level
23 dBA
 Dimension
150 mm (W) x 85 mm (H) x 220 mm (D)
 Weight
3.4 kg

Other Details

MPN:
SST-OP1200
