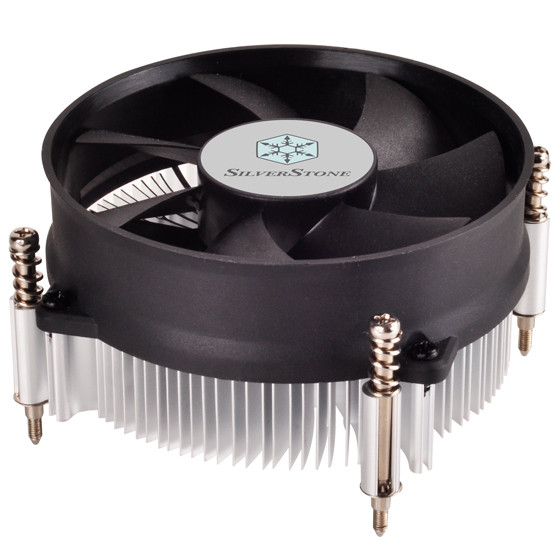

SilverStone Technology’s Nitrogon NT09-115X is a slim profile CPU cooler designed for space limited applications that utilizes LGA 1156/1155/1150/1151 platforms. It has an extruded aluminum fins for excellent thermal conductive. In addition, NT09-115X is equipped with a custom PWM 92mm silent fan that is staggered against the aluminum fins for better airflow focus and enhanced heat dissipation. Measuring only 45mm tall, the NT09-115X is a premier choice for slim cases utilizing LGA 1156/1155/1150/1151 processors.
|
Supports Intel LGA1156/1155/1150/1151 processors
■ Designed for low profile systems at only 45mm tall
■ Custom quiet 92mm fan for excellent cooling and low noise
■ Extruded aluminum fins for good heat dissipation
■ Reinforced back plate design reduces motherboard bending to provide tighter CPU contact
Model No. | SST-NT09-115X |
Material | Aluminum core, extruded aluminum fins |
Application | Intel Socket LGA1156/1155/1150/1151 |
Cooling fan | 92mm PWM |
Dimension w/fan | 96mm (W) x 45mm (H) x 96mm (D) |
Fan blade size | 92mm (W) x 25mm (H) x 92mm (D) |
Fan speed | 550 ~ 2500 RPM |
Air pressure | 0.136 ~ 2.8mmH2O |
Noise | 18.5 ~32.0dBA |
CPU TDP | 65W |
Net Weight | 213.5g (with fan) |
Air Flow (CFM) | 10.34 ~ 47.0CFM |
