■ Highest performance capability in super slim form factor

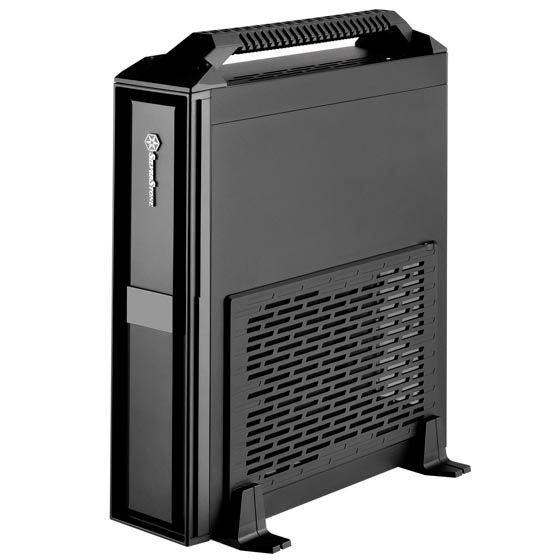

■ Optional models includes removable carrying handle (ML08B-H, ML08B-HW)
■ Support graphics card up to 13 inches
■ Mini-ITX motherboard & SFX PSU compatible
■ Independent expansion slot design for easy assembly
■ Tool-less drive cage design
■ Fits in nearly any environment with horizontal or vertical orientation
Material | Reinforced plastic outer shell, steel body | |
Motherboard | Mini-ITX | |
Multimedia | -- | |
Drive Bay | External | Slim optical 12.7mm or 9.5mm x 1 |
(9.5mm compatibility limited to tray type) | ||
Internal | 2.5” x 2 (one additional 3.5” or 2.5” space depending on expansion card installed) |
|
Cooling System | Front | -- |
Rear | Passive exhaust vents | |
Side | Oversized vents over CPU/motherboard and expansion area | |
Top | -- | |
Bottom | -- | |
Internal | -- | |
Expansion Slot | 2 | |
Front I/O Port | USB 3.0 x 2 audio x 1 MIC x 1 |
|
Power Supply | SFX & SFX-L | |
Operating system support | -- | |
Expansion Card | *Compatible with 13” long, width restriction – 4.78” | |
Limitation of CPU cooler | 58mm | |
Limitation of PSU | -- | |
Net Weight | 3.2kg~3.5kg | |
Dimension | 380mm (W) x 87mm (H) x 370mm (D), 12 liters | |
Extra | Support two Kensington locks | |
Support VESA Mount | -- |
