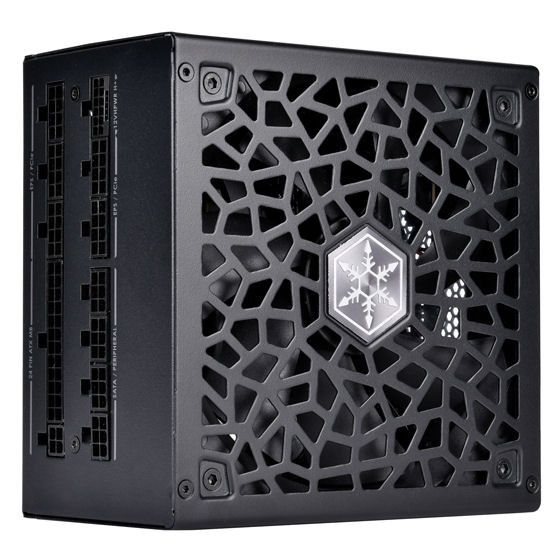

Silverstone SST-HA850R-PM HELA 850R Cybenetics Platinum 850W Modular ATX Power Supply

Price:
 $249.99
MPN:
 SST-HA850R-PM
Brand:
UPC:
 844761021627
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-HA850R-PM HELA 850R Cybenetics Platinum 850W Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • 100% modular cables
  • Super flexible black flat cables
  • All Japanese electrolytic capacitors
  • Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
  • 24/7 continuous power output with 50℃ operating temperature
  • 180° angled SATA connectors designed for stack mounted hard drives
  • Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
Product No.
SST-HA850R-PM
Model (safety certification)
SST-AX0850MCPT-A
Color
Black (lead-free paint)
Max. DC Output
850W
Power density
439W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 70.8A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5/-7% ±10% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V
120W
Combined +12V
849.6W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥89% & <91% overall efficiency
MTBF
100,000 hrs
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
1 x 12+4-Pin 12VHPWR connector
5 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
6 x 4-Pin Peripheral connectors
2 x 4-Pin Floppy connectors
Cooling System
Silent 135mm FDB fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150 mm (W) x 86 mm (H) x 150 mm (D)
5.91" (W) x 3.39" (H) x 5.91" (D)

Other Details

MPN:
SST-HA850R-PM
