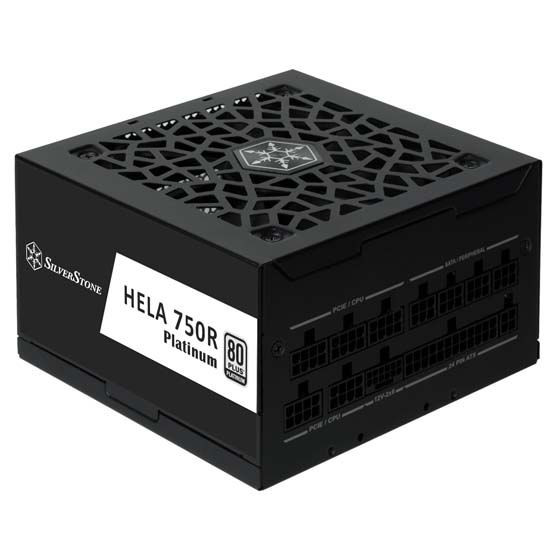

Silverstone SST-HA750R-PM HELA 750R Platinum 850W Modular ATX Power Supply

Price:
 $179.99
MPN:
 SST-HA750R-PM
Brand:
UPC:
 844761027339
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-HA750R-PM HELA 750R Platinum 850W Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Support 12V-2x6 PCIe connector in compliance with ATX 3.1 standards.
  • High efficiency with 80 PLUS Platinum certification
  • 100% modular cables
  • 24/7 continuous power output with 50℃ operating temperature
  • All Japanese electrolytic capacitors
  • Silent running 120mm Fluid Dynamic Bearing (FDB) cooling fan
  • Equipped with sem-fanless switch function
  • 180° angled SATA connectors, ideal for systems with a parallel hard drive layout.
Product No.
SST-HA750R-PM
Model (safety certification)
SST-AX0750MCPT-C
Color
Black (lead-free paint)
Max. DC Output
750W
Power density
415W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62.5A 2.5A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5~-7% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
100W
Combined +12V
750W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12V-2x6 connector
12 x SATA connectors
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
Cooling System
120mm Fluid Dynamic Bearing fan
Noise Level
0 dBA minimum
Certification
80 PLUS Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
5.9” (W) x 3.39” (H) x 5.51” (D)

Other Details

MPN:
SST-HA750R-PM
