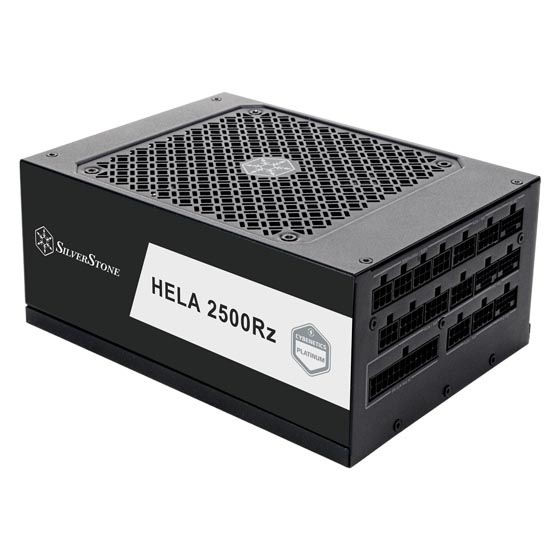

Silverstone SST-HA2500R-PM HELA 2500Rz Platinum Cybenetics Platinum 2500W ATX 3.1 & PCIe 5 Fully Modular ATX Power Supply

Price:
 $899.99
MPN:
 SST-HA2500R-PM
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-HA2500R-PM HELA 2500Rz Platinum Cybenetics Platinum 2500W ATX 3.1 & PCIe 5 Fully Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Compliant with ATX 3.1 and PCIe Gen 5 standards, supporting 12V-2x6 PCIe connectors
  • 4 x native 12V-2x6 connectors with cables included, supporting RTX 40/50 series GPUs.
  • High efficiency with Cybenetics Platinum certification
  • 24/7 continuous power output with 50℃ operating temperature
  • Fully modular design with  SilverStone’s 3rd generation modular interface
  • Silent running 135mm dual ball bearing fan with delayed shut-off function
  • Compact 200mm depth design allows for easy system integration
Product No.
SST-HA2500R-PM
Model (safety certification)
SST-AX2500MCPT-A
Color
Black (lead-free paint)
Max. DC Output
2500W
Power density
969W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 208.3A 3.0A 0.5A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 50mV 30mV 50mV
Combined +3.3V & +5V
120W
Combined +12V
2500W
Input Voltage
2500W: 200 ~ 240 Vrms

1650W: 103 ~ 264 Vrms

1350W: 90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
≥89% & <91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection

Over Power Protection

Over Voltage Protection

Under Voltage Protection

Short Circuit Protection

Over Temperature Protection
Connectors
1 x 24 Pin motherboard connector

4 x 8 / 4-Pin EPS / ATX 12V connect

7 x 8 / 6-Pin PCIe connectors

4 x 12+4-Pin 12V-2x6 connector

12 x SATA connector

4 x 4-Pin Peripheral connector
Cooling System
135mm dual ball bearing fan
Noise Level
18 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 200mm (D)
5.91" (W) x 3.39" (H) x 78" (D)

Other Details

MPN:
SST-HA2500R-PM
