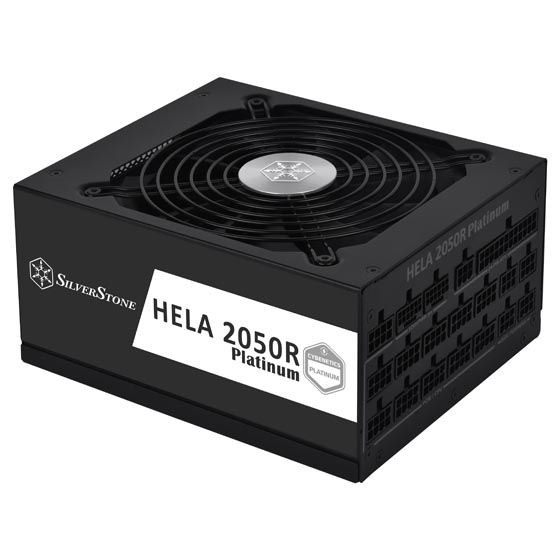

Silverstone SST-HA2050R-PM HELA 2050R Platinum 2050W Modular ATX Power Supply

Price:
 $569.99
MPN:
 SST-HA2050R-PM
Brand:
UPC:
 844761025540
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-HA2050R-PM HELA 2050R Platinum 2050W Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
  • High efficiency with Cybenetics Platinum certification
  • Built-in MCU semi-fanless mode to achieve optimized cooling performance
  • 2050W continuous power output rated for 24/7 operation
  • Fully modular design with SilverStone’s 3rd generation modular interface
  • 2 x native 12VHPWR connector on modular interface with 3 x 12VHPWR cable included
  • Silent running 135mm dual-ball bearing fan with advanced semi-fanless operation
Product No.
SST-HA2050R-PM
Model (safety certification)
SST-AX2050MCPT-C
Color
Black (lead-free paint)
Max. DC Output
2050W
Power density
882W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 25A 22A 170A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 60mV 30mV 60mV
Combined +3.3V & +5V
120W
Combined +12V
2040W
Input Voltage
2050W: 200~240 Vrms
1650W: 103 ~ 264 Vrms
1350W: 90~264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.95 at full load）
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
14 x 8 / 6-Pin PCIe connectors
3 x 12+4-Pin 12VHPWR connector
12 x SATA connector
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
Cooling System
135mm dual-ball bearing fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 180mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D)

Other Details

MPN:
SST-HA2050R-PM
