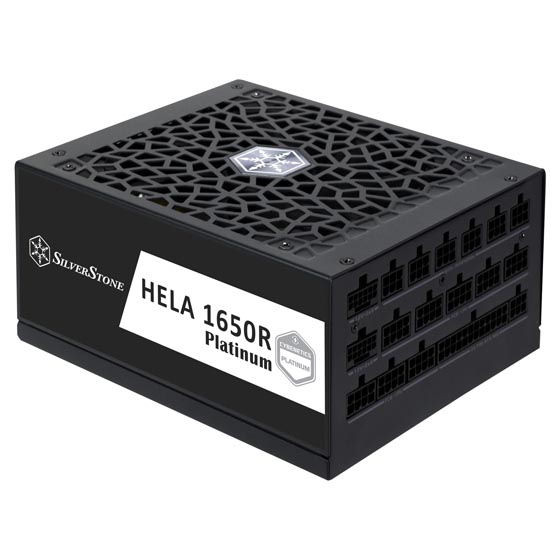

Silverstone SST-HA1650R-PM HELA 1650R Cybenetics Patinum 1650W Full Modular ATX Power Supply

Price:
 $499.00
MPN:
 SST-HA1650R-PM
Brand:
UPC:
 844761027568
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-HA1650R-PM HELA 1650R Cybenetics Patinum 1650W Full Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
  • High efficiency with Cybenetics Platinum certification
  • 24/7 continuous power output with 50℃ operating temperature
  • Fully modular design with SilverStone’s 3rd generation modular interface
  • Silent-running 140mm FDB fan with delayed shut-off function
  • All black flat cables
Product No.
SST-HA1650R-PM
Model (safety certification)
SST-AX1650MCPT-A
Color
Black (lead-free paint)
Max. DC Output
1650W
Power density
710.6W/L
Load Range
Output +3.3V +5V +12V1 +5VSB -12V
Max.(Amps) 25A 25A 137.5A 3A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±3%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V
130W
Combined +12V
1650W
Input Voltage
1650W: 103~264 Vrms
1350W: 90~264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
9 x 8 / 6-Pin PCIe connectors
2 x 12+4-Pin 12V-2x6 connectors
16 x SATA connectors
6 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
Cooling System
Silent 140mm FDB fan
Noise Level
18 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 180mm (D)
5.91” (W) x 2.5” (H) x 7.1” (D)

Other Details

MPN:
SST-DA1650-G
