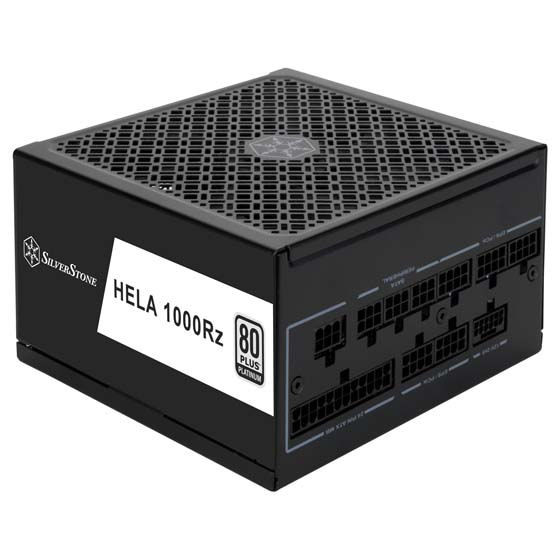

Silverstone SST-HA1000R-PM 80 PLUS Platinum 1000W ATX 3.1 & PCIe 5 Full Modular ATX Power Supply

Price:
 $219.99
MPN:
 SST-HA1000R-PM
Brand:
UPC:
 844761030018
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-HA1000R-PM 80 PLUS Platinum 1000W ATX 3.1 & PCIe 5 Full Modular ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
  • High efficiency with 80 PLUS Platinum certification
  • 100% modular cables with black embossed flat cable design
  • 24/7 continuous power output with 40℃ operating temperature
  • All Japanese electrolytic capacitors
  • Silent running 135mm FDB fan with auto semi-fanless function
  • Included 180° angled SATA connectors designed for stack mounted hard drives
Product No.
SST-HA1000R-PM
Model (safety certification)
SST-AX1000MCPT-B
Color
Black (lead-free paint)
Max. DC Output
1000W
Power density
553.5 W/L
Load Range
Output +3.3V +5V +12V1 +5VSB -12V
Max.(Amps) 20A 20A 83.3A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 40mV 30mV 120mV
Combined +3.3V & +5V
110W
Combined +12V
999.6W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
89% ~ 92% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over current protection
Over voltage protection
Short circuit protection
Over Temperature protection
Connectors
1 x 24/20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
1 x 12+4-Pin 12V-2x6 connector
5 x 8 / 6-Pin PCIe connectors
8 x SATA connector
4 x 4-Pin Peripheral connector
Cooling System
Single 135mm FDB fan
Noise Level
18 dBA min.
Certification
80 PLUS Platinum
Form factor
ATX
Dimension
150mm (W) x 86mm (H) x 140mm (D)

Other Details

MPN:
SST-HA1000R-PM
