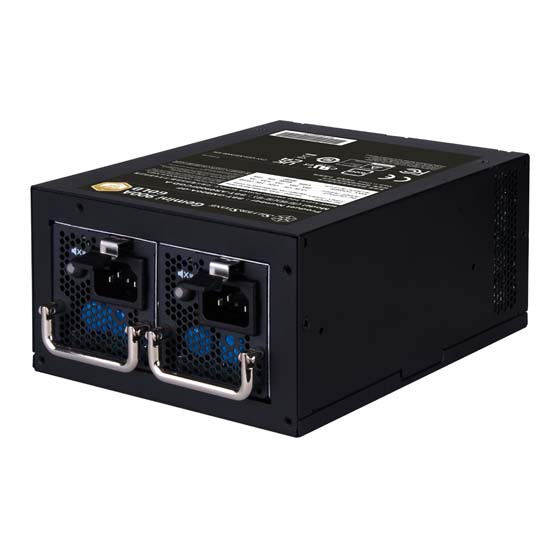

Silverstone SST-GM900A-GF 600W+600W Gemini 900A Gold Cybenetics Gold 900W ATX Redundant Power Supply

Price:

$799.00

MPN:

SST-GM900A-GF

Brand:

SILVERSTONE

UPC:

844761025977

Availability: Ships in 2 business days

Shipping:

Calculated at checkout

Add to Wishlist

Product Description

900W+900W 24hour and well working performance at 50°C fully continuous power output
ATX form factor
Cybenetics Gold Certification
1+1 ATX redundant configuration
All Japanese electrolytic capacitors
Hot swappable design
Convenient pull-out handle bars

Product No.

SST-GM900A-GF

Model (safety certification)

SST-AR0900FCGD-A

Color

Black

Max. DC Output

900W

Load Range

Output	+3.3V	+5V	+12V	+5VSB	-12V
Max.(Amps)	20A	20A	75A	3.0A	0.5A
Min.(Amps)	1A	1A	1A	0.1A	0A
Range (%)	±5%	±5%	±5%	±5%	±10%
Line Reg.(%)	±1%	±1%	±1%	±1%	±1%
Ripple(mVp-p)	50mV	50mV	120mV	50mV	200mV

Combined +3.3V & +5V

130W

Combined +12V

900W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

≥89% & <91% overall efficiency

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection

Connectors

1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
4 x 8 / 6-Pin PCIe connectors
3 x SATA connectors
9 x 4-Pin Peripheral connectors
1 x 9-Pin USB connector

Cooling System

40mm DC fans

Noise Level

72 dBA maximum

LED indicator

Modular Status	indicator
No AC power to all PSU	OFF
AC present / only standby output on	Green blinking
Power supply DC output ON and OK	Solid green
Power supply failure	Solid red

Certification

Cybenetics Gold

Form factor

1+1 ATX redundant

Dimension

150mm (W) x 86mm (H) x 201mm (D) (Housing with bracket, without handle)
150mm (W) x 86mm (H) x 190mm (D) (Housing without bracket)
140mm (W) x 40mm (H) x 175mm (D) (Module only without handle)
