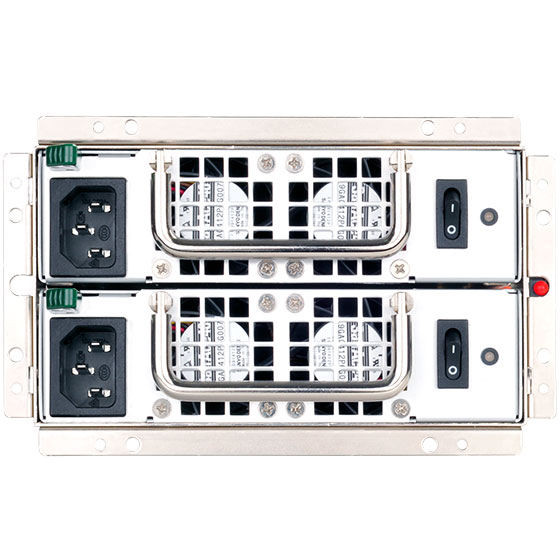

Silverstone SST-GM500-G 500W+500W Gemini Series 80 Plus Gold Redundant Power Supply

Price:
 $509.00
MPN:
 SST-GM500-G
Brand:
UPC:
 844761012151
Availability: Ships in 2 business days
Ships in two business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Click the button below to add the Silverstone SST-GM500-G 500W+500W Gemini Series 80 Plus Gold Redundant Power Supply to your wish list.

SHARE
Pin It

Product Description

￭ 500+500W 24hour fully continuous power output

￭ PS2 mini redundant power with 150mm(W) x 85mm(H) x 180mm(D)

￭ 80 PLUS Gold Certified

￭ Active PFC (full range)

￭ 1+1 redundant configuration

￭ Hot swappable design

￭ Convenient pull-out handle bars

￭ Industry-leading reliability

￭ Support PMBus 1.2

Model No.
SST-GM500-G
Max. DC Output
500W+500W
Power density
349W per liter
Load Range

 +3.3V +5V +12V1 +5VSB -12V
Max.(Amps)
 25A 25A 41A 3.5A 0.8A
Min.(Amps)
 1.0A 1.0A 1.0A 0.1A 0A
Range (%)
 ±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV 50mV 120mV
Color
Silver (zinc-plated surface)
combined +3.3, +5V
170W
combined +12V
500W+500W
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.걁PF>0.9 at Full Load걂
Efficiency
88%~92% at 20%~100% loading with single modular
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Connectors
1 x 24 / 20-Pin Motherboard connector걁500mm걂
1 x 8-Pin EPS connector걁500mm걂
1 x 4-Pin ATX 12V connector걁500mm걂
2 x 6-Pin PCIE connector걁500mm걂
4 x SATA connector걁"500mm / 150mm" x 2걂
8 x 4-Pin Peripheral connector걁"500mm / 150mm"x4걂
2 x 4-Pin Floppy connector걁"500mm / 150mm / 150mm"x2 걂
Cooling System
2x dual 40 mm DC fans
Noise Level
51dBA
Dimension
150 mm (W) x 85 mm (H) x 180 mm (D)
Weight
3.2 kg
Form factor
Certification
80 PLUS GOLD

Other Details

MPN:
SST-GM500-G
