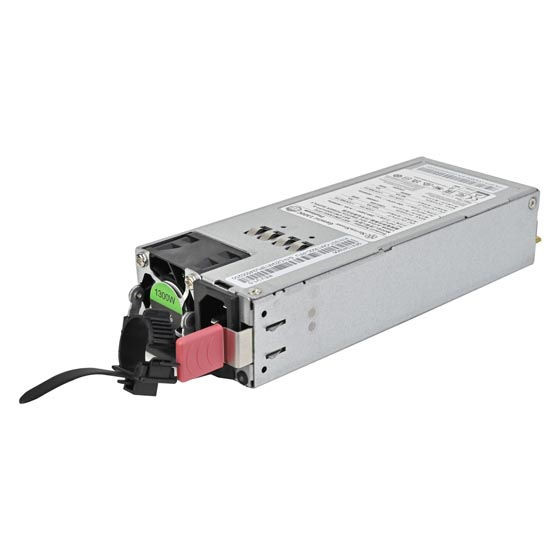

Silverstone SST-GM1300C-PFU Gemini 1300C Platinum 1300W Replacement Module

Price:
 $629.99
MPN:
 SST-GM1300C-PFU
Brand:
UPC:
 844761027520
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-GM1300C-PFU Gemini 1300C Platinum 1300W Replacement Module to your wish list.

SHARE
Pin It

Product Description

  • Replacement module for SilverStone Gemini 1300C Platinum (SST-GM1300C-PF)
  • 1U height CRPS form factor
  • Full range Active PFC with Cybenetics Platinum certification
  • All Japanese electrolytic capacitors
  • Support PMBus 1.2
  • Hot-swappable design with convenient pull-out handle bars
  • Cold Redundancy
  • Smart Ride Through (SmaRT) effectively obtains SMBAlert signal ensures continuity of power during power instability and interruptions.
  • Closed Loop System Protection (CLST)
  • 12V main output & 12V standby output
  • 3A max standby output current
Product No.
SST-GM1300C-PFU
Model (safety certification)
SST-CM1300FCPT-A
Color
Silver (Lead-free paint)
Max. DC Output
1,000W (90-140Vac)
1,300W (180-264Vac)
Output Rating
Voltage(V) +12.2V +12.2Vsb
Current(A) 2A-105.3A 0.5A-3.0A
Combined +12V
1,300W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 10% load, PF>0.96 20% load, PF>0.98 50% load, PF>0.99 100% load）
Efficiency
≥89% & <91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 55°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
Cooling System
40mm DC fans
LED indicator
Modular Status indicator
No AC power to all PSU OFF
AC present / only standby output on Green blinking
Power supply DC output ON and OK Solid green
Power supply failure Solid red
Certification
Cybenetics Platinum
Dimension
73.5mm (W) x 40mm (H) x 185mm (D) (without protective clip)

Other Details

MPN:
SST-GM1300C-PFU
