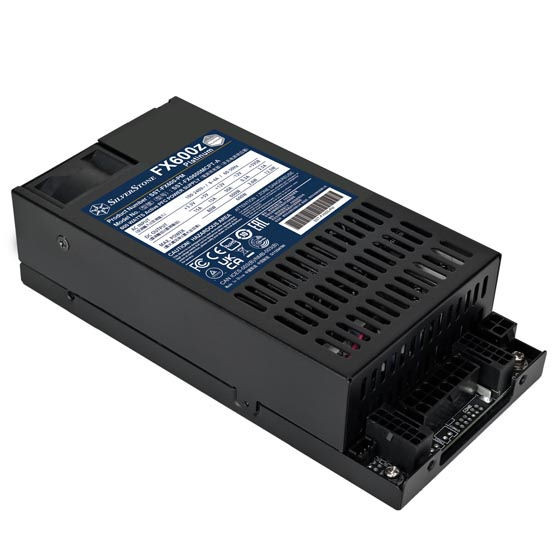

Silverstone SST-FX600-PM FX600z Platinum Cybenetics Platinum 600W Fully Modular Flex ATX Power Supply

Price:
 $239.99
MPN:
 SST-FX600-PM
Brand:
UPC:
 844761029005
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-FX600-PM FX600z Platinum Cybenetics Platinum 600W Fully Modular Flex ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Standard Flex ATX form factor
  • Built-in 300W 12V-2x6 connector with a 300W 12V-2x6 connector cable included
  • Delivers 600W continuous power output at 50°C, rated for 24/7 continuous operation.
  • Japanese primary capacitor
  • Class-leading +12V single rail
  • PCIe 8-pin and 6-pin connector support
Max. DC Output
600W
Power density
1213W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 15A 15A 50A 2.5A 0.3A
Min.(Amps) 0.1A 0.2A 0.5A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
80W
Combined +12V
600W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
≥89% to <91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over power protection
Over current protection
Over voltage protection
Short circuit protection
Under voltage protection
Over Temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
1 x 12+4-Pin 12V-2x6 connector
2 x 8 / 6-Pin PCIe connector
2 x SATA connector
2 x 4-Pin Peripheral connector
Cooling System
40mm x 1
Noise Level
20 dBA min.
Certification
Cybenetics Platinum
Form factor
Flex ATX
Dimension
81.5mm (W) x 40.5mm (H) x 165mm (D)
3.21" (W) × 1.59" (H) × 6.49" (D)

Other Details

MPN:
SST-FX600-PM
