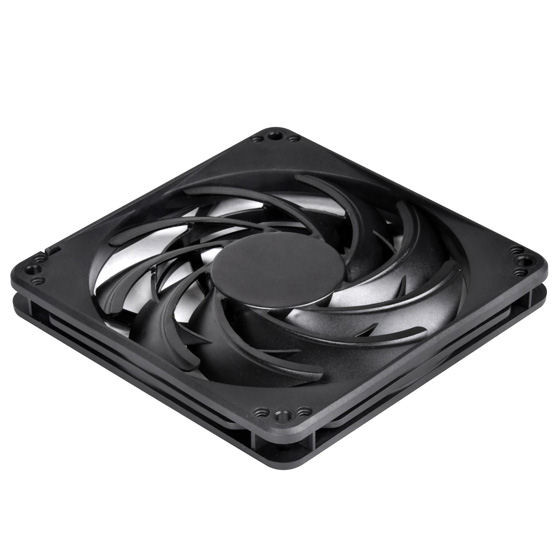

The FN124 is a high quality 120mm fan with a slim profile of 15mm thickness designed for use in smaller cases or applications that have limited space. It has fan blades designed to provide excellent balance of airflow and air pressure for their size.
■ Slim 15mm thick design for superb compatibility with smaller case designs
■ Optimized fan blades for balanced air pressure and airflow
■ Air-inlet with optimized aerodynamic reduces noisy air turbulence
Model No. | SST-FN124B |
Material | PC blade, PBT frame |
Color | Black fan blades, black frame |
Bearing | Long life sleeve |
Connectors | 3pin |
Rated Voltage | 12V DC |
Start Voltage | 7V |
Rated Current | 0.06A |
Rated Power | 0.72W |
Speed | 1500 rpm |
Airflow | 25.06CFM |
Static Pressure | 0.86mmH2O |
Noise Level | 18dBA |
Life Time | 40,000hr |
Diameter | 120mm (L) x 120mm (W) x 15mm (H) |
Weight | 101g |
