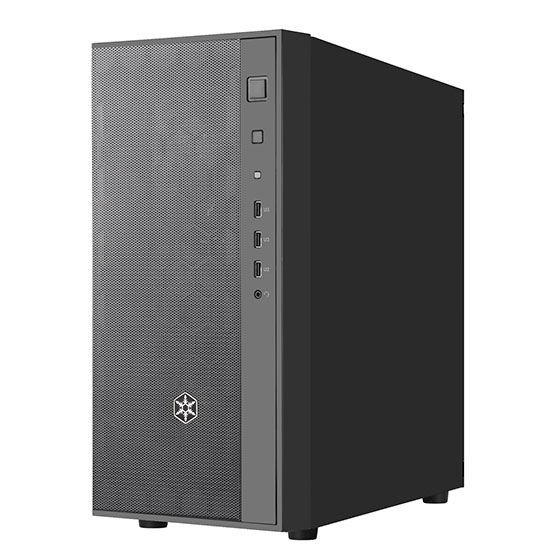

Loading... Please wait...■ Fully meshed front panel with shortened chassis provides large surface area for air intake
■ Precisely designed interior provides sufficient space for high end graphics card and multiple cooling options
■ Two USB 3.0 ports and one USB 2.0 port integrated with single audio jack provide great flexibility for various mobile audio accessories
■ Removable filters on top and bottom make cleaning out dust a breeze
| Material | Steel, plastic, tempered glass | |
| Motherboard | ATX, Micro-ATX, Mini-ITX | |
| Drive bay | External | N/A |
| Internal | 3.5" x 1 2.5" x 4 |
|
| Cooling system | Front | 120mm x 3 / 140mm x 2 |
| Rear | 120mm x 1 (120mm x 1 black fan included) |
|
| Side | N/A | |
| Top | 120mm x 2, 140mm x 2 | |
| Bottom | N/A | |
| Internal | N/A | |
| Radiator support | Front | 120mm / 140mm / 240mm / 280mm |
| Rear | 120mm | |
| Top | 120mm / 240mm* | |
| Bottom | N/A | |
| Internal | -- | |
| Expansion slot | 7 | |
| Front I/O port | USB 3.0 x 2 USB 2.0 x 1 Audio x 1 |
|
| Power supply | Standard PS2(ATX) | |
| Limitation of expansion card | 322mm with front fan | |
| Limitation of CPU cooler | 165mm | |
| Limitation of PSU | 160mm with 3.5" drive cage installed | |
| Net weight | 5 kg | |
| Dimension | 207mm (W) x 446mm (H) x 390mm (D), 37 Liters 8.15" (W) x 17.56" (H) x 15.35" (D), 37 Liters |
|
